Paper Jams Inside the Main Unit (When the Inner Finisher Is Installed)
Remove paper jammed inside the main unit or inner finisher when the inner finisher is installed. Follow the instructions on the control panel to check the location of the paper jam and remove the jammed paper.
If the paper tears, be sure to remove all parts so that no pieces remain.
If you cannot remove the paper, do not try to remove it forcibly. Check the control panel and remove the jammed paper at another location.
If the paper tears, be sure to remove all parts so that no pieces remain.
If you cannot remove the paper, do not try to remove it forcibly. Check the control panel and remove the jammed paper at another location.
* When you are using Long Sheet paper, see the following:
IMPORTANT
When Opening the Right Cover of the Main Unit
Touching the inside of the main unit with an electrostatic charge on your hands may damage the components. Before performing work such as replacing parts or removing paper jams inside the main unit, grip the handle securely and open the right cover of the main unit. A metal plate located behind the handle discharges any static electricity.
If you interrupt work such as replacing parts or removing paper jams inside the main unit, close the right cover of the main unit. When resuming work, grip the handle securely and open the right cover of the main unit. This ensures that any static electricity on your hands is discharged.
1

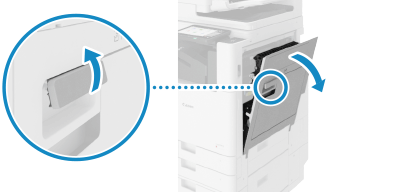

Pull the lever and open the right cover of the main unit.
2
If paper is jammed inside the reversing unit, gently pull it out in the direction of the arrow.
3

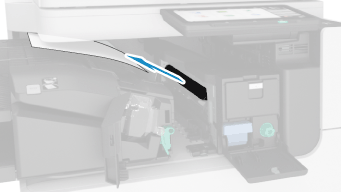

If paper is jammed in the output area, gently pull it out in the direction of the arrow.
4
Open the left cover of the inner finisher.
5

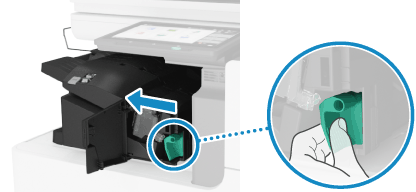

Hold the green lever and slide the inner finisher to the left.
6
Check whether paper is jammed inside the inner finisher.
1

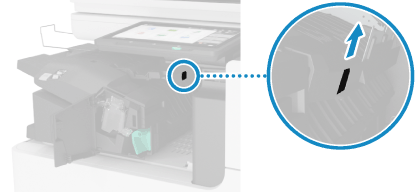

Lift the green guide.
2
If paper is jammed, gently pull it out in the direction of the arrow.
3
Lower the green guide.
When the Puncher Unit Is Installed
Check for paper jammed inside the puncher unit.
1
Open the front cover of the puncher unit.
2
Turn the green knob.
3
If the paper was ejected, gently pull it out in the direction of the arrow.
4
Close the front cover of the puncher unit.
7
Slide the inner finisher to the right and push it in.
Be careful not to get your fingers caught in the gaps when pushing in the inner finisher.
8
Close the left cover of the inner finisher.
9
Gently close the right cover of the main unit until you hear a click.
When the paper jam is cleared, the screen indicating a paper jam disappears, and printing resumes automatically.
If a screen indicating a paper jam at a different location appears, continue following the instructions on the screen to remove the jammed paper.
If a screen indicating a paper jam at a different location appears, continue following the instructions on the screen to remove the jammed paper.
