Staple Jams in Staple Finisher-AQ and Booklet Finisher-AQ (Option)
Remove the jammed staple from the location where it occurred. Follow the instructions on the control panel to check the location of the staple and remove the jammed staple.
Staple Jams in the Staple Finisher
This section describes how to clear staple jams in the staple finisher. Follow the instructions on the control panel to check the location of the staple and remove the jammed staple.
Required Preparations
Close the cover and paper drawer if they are open.
1
Open the front cover of the finisher.
2
Pull out the staple cartridge.
Lower the green knob on the staple cartridge, and pull it straight out.
3
Remove the jammed staples from the staple cartridge.
1

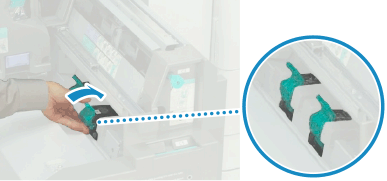

Lift the knob of the staple cartridge.
2
Remove all jammed staples and exposed staples.
3
Lower the knob of the staple cartridge.
4
Install the staple cartridge into the finisher.
Hold the green knob on the staple cartridge, and firmly push it all the way in.
5
Close the front cover of the finisher.
Dry stapling may be performed automatically to reposition the staples.
Staple Jams in the Booklet Finisher
This section describes how to clear staple jams in the saddle stitch unit. Follow the instructions on the control panel to check the location of the staple and remove the jammed staple.
The method for removing staple jams in the stapler unit is the same as that when removing staple jams in the staple finisher. Staple Jams in Staple Finisher-AC
The method for removing staple jams in the stapler unit is the same as that when removing staple jams in the staple finisher. Staple Jams in Staple Finisher-AC
Required Preparations
Remove all paper output to the booklet tray.
Close the cover and paper drawer if they are open.
1
Open the front cover of the finisher.
2
Pull out the saddle stitch unit.
3
Remove the staple cartridge.
4
Remove the jammed staples from the staple cartridge.
1

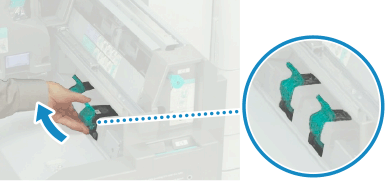

Hold both sides of the staple case, and lower the knob.
2
Remove all jammed staples and exposed staples.
3
Lift the knob of the staple cartridge.
5
Install the staple cartridge into the saddle stitch unit.
Firmly push in the cartridges as far as they will go.
6
Gently push the saddle stitch unit into the machine.
7
Close the front cover of the finisher.
8
Reposition the staples. [Saddle Stitch Staple Repositioning]
After clearing the staple jam, be sure to reposition the staples.
