Available Paper

The paper types that can be used with this machine are shown in the following table.
Also, confirm the precautions regarding paper use.

Supported Paper Sizes

Paper Sizes	Paper Source (Standard)		Paper Source (Optional)
Paper Sizes	Paper Drawer of Main Unit	Multi-Purpose Tray	Paper Feeder PF-L
11" x 17"
LTR
LTRR
LGL
STMT	-		-
STMTR
EXEC
EXECR
A3
A4
A4R
A5			*1
A5R
A6R			*1
B4
B5
B5R
B6R
8K
16K
16KR
FOOLSCAP/FOLIO
FOOLSCAP (Australia)
OFICIO
OFICIO (Ecuador)
OFICIO (Brazil)
OFICIO (Argentina)
OFICIO (Mexico)
LETTER (Government)
LETTER R (Government)
LETTER (Argentina)
LETTER R (Argentina)
LEGAL (India)
LEGAL (Government)
F4A
3x5 inch	-		-
Long Sheet (11.7x35.4)	-		-
Long Sheet (11.7x47.2)	-		-
Free Size (2 1/2" x 4 3/4" to 11 3/4" x 17" (64.0 mm x 120.0 mm to 297.0 mm x 431.8 mm))	*2		*3
Custom Size (2 1/2" x 4 3/4" to 11 3/4" x 52" (64.0 mm x 120.0 mm to 297.0 mm x 1,320.0 mm))	*2		*3
Postcard	-		-
Reply Postcard	-		-
4 on 1 Postcard	-		-
No.10 (COM10)	-		-
ISO-C5	-		-
DL	-		-
Monarch	-		-
Nagagata 3	-		-
Nagagata 4	-		-
Nagagata 40	-		-
Yougatanaga 3	-		-
Kakugata 2	-		-

*1 The included attachment is required.

*2 You can use custom size settings ranging from 3 3/8" x 5 7/8" to 11 3/4" x 17" (85.0 mm x 148.0 mm to 297.0 mm x 431.8 mm).

*3 You can use custom size settings ranging from 3 3/8" x 5 7/8" to 11 3/4" x 17" (85.0 mm x 148.0 mm to 297.0 mm x 431.8 mm). When the included attachment is attached, you can use custom size settings ranging from 3 3/8" x 5 7/8" to 11 3/4" x 5 7/8" (85.0 mm x 148.0 mm to 297.0 mm x 148.0 mm).


Paper sizes supported by this machine The following table shows most of the sizes of paper and envelope that can be used with the machine. Other supported paper sizes are as follows. 11"x17" (279.4 mm x 431.8 mm) FOOLSCAP/FOLIO(8 1/2" x 13" (215.9 mm x 330.2 mm)) OFICIO(8 1/2" x 12 1/2" (215.9 mm x 317.5 mm)) OFICIO (Mexico)(8 1/2" x 13 5/8" (216.0 mm x 341.0 mm)) OFICIO (Ecuador)(8 5/8" x 12 5/8" (220.0 mm x 320.0 mm)) OFICIO (Argentina)(8 5/8" x 13 3/8" (220.0 mm x 340.0 mm)) LETTER (Government) (8" x 10 1/2" (203.2 mm x 266.7 mm)) LETTER (Argentina) (8 5/8" x 11" (220.0 mm x 280.0 mm)) OFICIO (Brazil) (8 1/2" x 14" (216.0 mm x 355.0 mm)) LEGAL (India) (8 1/2" x 13 1/2" (215.0 mm x 345.0 mm)) LEGAL (Government) (8" x 13" (203.2 mm x 330.2 mm)) FOOLSCAP (Australia) (8 1/8" x 13 1/4" (206.0 mm x 337.0 mm)) F4A (8 1/2" x 13 1/2" (215.9 mm x 342.9 mm)) Postcard (4" x 5 7/8" (100.0 x 148.0 mm)) Reply Postcard (5 7/8" x 7 7/8" (148.0 x 200.0 mm)) 4 on 1 Postcard (7 7/8" x 11 5/8" (200.0 x 296.0 mm)) 3x5 inch (76.2 mm x 127.0 mm) "Vertical" side and "Horizontal" side of paper In the User's Guide, regardless of the paper orientation, the side of paper perpendicular () to the front of the machine is referred to as the "vertical" side while the side parallel () to the front of the machine is referred to as the "horizontal" side. In the User's Guide, loading paper with the longer side perpendicular to the front of the machine is referred to as placing in "portrait orientation" while loading paper with the longer side horizontal to the front of the machine is referred to as placing in "landscape orientation."

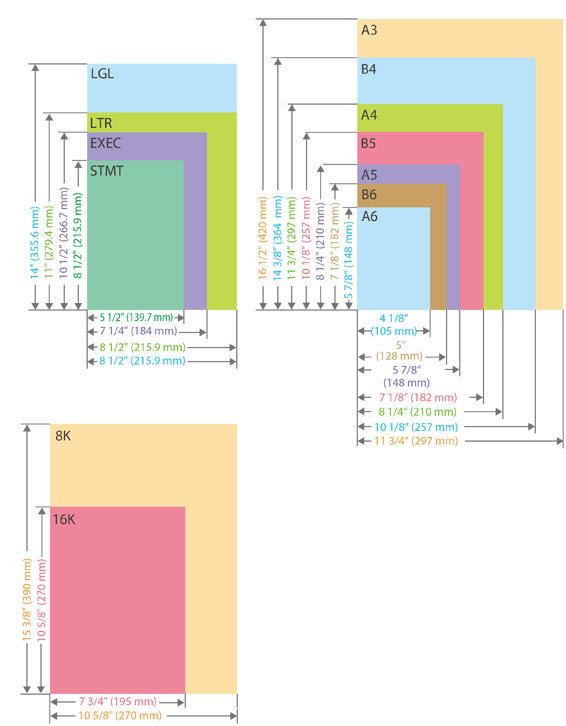

Paper sizes supported by this machine

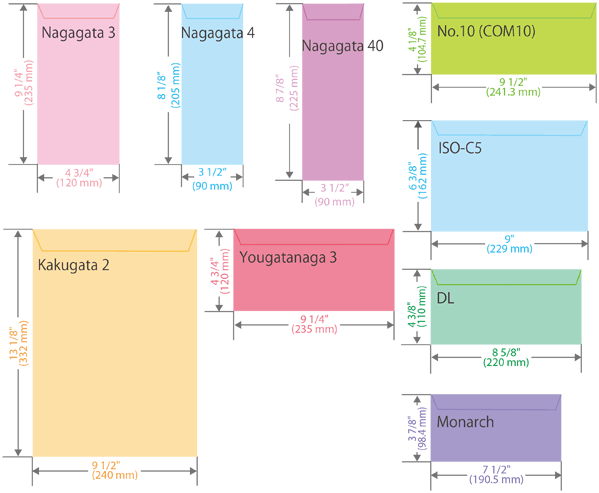

The following table shows most of the sizes of paper and envelope that can be used with the machine.

Other supported paper sizes are as follows.

11"x17" (279.4 mm x 431.8 mm)

FOOLSCAP/FOLIO(8 1/2" x 13" (215.9 mm x 330.2 mm))

OFICIO(8 1/2" x 12 1/2" (215.9 mm x 317.5 mm))

OFICIO (Mexico)(8 1/2" x 13 5/8" (216.0 mm x 341.0 mm))

OFICIO (Ecuador)(8 5/8" x 12 5/8" (220.0 mm x 320.0 mm))

OFICIO (Argentina)(8 5/8" x 13 3/8" (220.0 mm x 340.0 mm))

LETTER (Government) (8" x 10 1/2" (203.2 mm x 266.7 mm))

LETTER (Argentina) (8 5/8" x 11" (220.0 mm x 280.0 mm))

OFICIO (Brazil) (8 1/2" x 14" (216.0 mm x 355.0 mm))

LEGAL (India) (8 1/2" x 13 1/2" (215.0 mm x 345.0 mm))

LEGAL (Government) (8" x 13" (203.2 mm x 330.2 mm))

FOOLSCAP (Australia) (8 1/8" x 13 1/4" (206.0 mm x 337.0 mm))

F4A (8 1/2" x 13 1/2" (215.9 mm x 342.9 mm))

Postcard (4" x 5 7/8" (100.0 x 148.0 mm))

Reply Postcard (5 7/8" x 7 7/8" (148.0 x 200.0 mm))

4 on 1 Postcard (7 7/8" x 11 5/8" (200.0 x 296.0 mm))

3x5 inch (76.2 mm x 127.0 mm)

"Vertical" side and "Horizontal" side of paper

In the User's Guide, regardless of the paper orientation, the side of paper perpendicular (

) to the front of the machine is referred to as the "vertical" side while the side parallel (

) to the front of the machine is referred to as the "horizontal" side.

In the User's Guide, loading paper with the longer side perpendicular to the front of the machine is referred to as placing in "portrait orientation" while loading paper with the longer side horizontal to the front of the machine is referred to as placing in "landscape orientation."

Supported Paper Types

Chlorine-free paper can be used with this machine.

Paper Type	Paper Weight	Paper Source (Standard)		Paper Source (Optional)
Paper Type	Paper Weight	Paper Drawer of Main Unit	Multi-Purpose Tray	Paper Feeder PF-L
Thin	16 lb bond (60 g/m²)
Plain 1	16 to 19 lb bond (61 to 74 g/m²)
Plain 2	20 to 24 lb bond (75 to 90 g/m²)
Plain 3	25 to 34 lb bond (91 to 128 g/m²)
Heavy 1	35 lb bond to 60 lb cover (129 to 163 g/m²)
Heavy 2	61 to 81.4 lb cover (164 to 220 g/m²)	-		-
Heavy 3	81.7 to 92.5 lb cover (221 to 250 g/m²)	-		-
Color	16 to 19 lb bond (61 to 74 g/m²)
Recycled 1*1	16 to 19 lb bond (61 to 74 g/m²)
Recycled 2*1	20 to 24 lb bond (75 to 90 g/m²)
Recycled 3*1	25 to 34 lb bond (91 to 128 g/m²)
Letterhead 1	16 to 19 lb bond (61 to 74 g/m²)
Letterhead 2	20 to 24 lb bond (75 to 90 g/m²)
Letterhead 3	25 to 34 lb bond (91 to 128 g/m²)
Letterhead 4	35 lb bond to 60 lb cover (129 to 163 g/m²)
Letterhead 5	61 to 81.4 lb cover (164 to 220 g/m²)	-		-
Coated 1	26.6 to 34 lb bond (100 to 128 g/m²)
Coated 2	35 lb bond to 60 lb cover (129 to 163 g/m²)
Coated 3	61 to 81.4 lb cover (164 to 220 g/m²)	-		-
Labels	31.4 lb bond (118 g/m²)	-		-
Bond 1	16 to 19 lb bond (61 to 74 g/m²)
Bond 2	19.9 to 27.4 lb bond (75 to 103 g/m²)
Envelope	21.3 to 26.6 lb bond (80 to 100 g/m²)	-		-
Postcard*2	70.3 lb cover (190 g/m²)	-		-
Free	16 lb bond to 92.5 lb cover (60 to 250 g/m²)	*3		*3

*1 You can use 100% post consumer recycled paper that meets EN12281.

*2 The inkjet printable postcard or reply postcard can not be used.

*3 You can use paper from 16 lb bond to 60 lb cover (60 g/m² to 163 g/m²).

Paper Available for Two-Sided Printing

When performing 2-sided printing, use paper that meets the following requirements.

Paper size:	11" x 17", LGL, LTR, LTRR, EXEC, EXECR, A3, B4, A4, A4R, B5, B5R, A5, A5R, Oficio, Ecuador-Oficio, Brazil-Oficio, Mexico-Oficio, Argentina-Oficio, Argentina-LTR, Argentina-LTRR, Government-LTR, Government-LTRR, Government-LGL, India-LGL, Australia-Foolscap, Foolscap/Folio, 8K, 16K, 16KR, F4A, Free (210.0 mm x 148.0 mm to 297.0 mm x 431.8 mm), Custom (210.0 mm x 148.0 mm to 297.0 mm x 431.8 mm)
Paper type:	Thin, Plain 1 to Plain 3, Color, Recycled 1 to Recycled 3, Heavy 1, Letterhead 1 to Letterhead 4, Coated 1, Coated 2, Bond 1, and Bond 2
Paper weight:	16 lb bond to 60 lb cover (60 g/m2 to 163 g/m2)

If using other paper, select <Yes> for <Enable settings for 2nd side of 2-sided page?> to print on the back side of printed paper.

Unusable Paper

Before printing, check whether the paper to use is suitable. Do not use the following types of paper, as they can cause paper jams or printing errors:

Wrinkled, creased, curled, torn, or damp paper*1

Thin straw paper, very thin paper, coarse paper, glossy paper

Paper with glue or other adhesive sticking out or label paper whose back side can be easily peeled off

Paper printed by a thermal transfer printer, back side of paper printed by a thermal transfer printer

*1 Printing on damp paper may cause steam to be emitted from the output area or water droplets to adhere to the output part, but this does not indicate a malfunction. This is because the water contained in the paper evaporates due to the heat generated when the toner fixes to the paper. This is more likely to occur when the room temperature is low.

Precautions Regarding Paper


When using paper Only use paper that has fully acclimatized to the environment in which this machine is installed. Using paper that has been stored under different temperature or humidity may cause paper jams or result in poor print quality. Paper handling and storage We recommend using the paper immediately after opening the package. Rewrap any remaining paper in its original package, and store it on a flat surface. Keep the paper wrapped in its original package to protect the paper from moisture or dryness. Do not store the paper in such a way that may cause it to curl or fold. Do not store the paper vertically or stack too much paper. Do not store the paper in direct sunlight, or in a place subject to high humidity, dryness, or drastic changes in temperature or humidity.

When using paper

Only use paper that has fully acclimatized to the environment in which this machine is installed. Using paper that has been stored under different temperature or humidity may cause paper jams or result in poor print quality.

Paper handling and storage

We recommend using the paper immediately after opening the package. Rewrap any remaining paper in its original package, and store it on a flat surface.

Keep the paper wrapped in its original package to protect the paper from moisture or dryness.

Do not store the paper in such a way that may cause it to curl or fold.

Do not store the paper vertically or stack too much paper.

Do not store the paper in direct sunlight, or in a place subject to high humidity, dryness, or drastic changes in temperature or humidity.

When printing on paper that has absorbed moisture
Steam may emit from the paper output area, or water droplets may form around the paper output area. There is nothing unusual about any of these occurrences, which occur when the heat generated from fixing toner on the paper causes moisture in the paper to evaporate (most likely to occur at low room temperatures).

Storing Paper Printed With the Machine

Be aware of the following precautions when handling and storing paper printed using the machine.

Storing Printed Paper

Store the paper on a flat surface.

Do not store paper together with items made from PVC (polyvinyl chloride), such as clear folders. The toner may melt, causing paper to become stuck to PVC-based material.

Store paper so that it does not become folded or wrinkled. Doing so may cause the toner to come off.

If you intend to store paper for long periods (two or more years), preserve them in a binder, etc.

Long-term storage may cause paper to discolor, which in turn may cause print to appear discolored.

Do not store paper in places with high temperatures.

Precautions when sticking printouts with adhesive

Be sure to use insoluble adhesive.

Test the adhesive on an unneeded printout before using.

Before stacking printouts that stuck with adhesive, check that the adhesive completely dried.
