Envelope Cassette Module-A
You can add a paper drawer dedicated for envelopes. This allows you to start printing on envelopes with reduced time and labor for paper replacement.

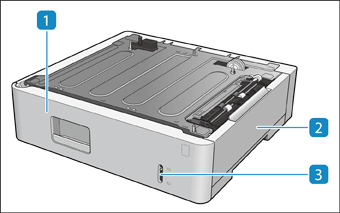

Names of Parts and Their Functions
Paper drawerLoad envelopes. Preparations and Orientation for Loading Envelopes
Right coverOpen this cover when clearing a paper jam inside the machine. Paper Jams in the Paper Source
Paper level indicatorIndicates the remaining amount of envelopes. The mark moves downward as the remaining amount of envelopes decreases.
IMPORTANT
When using the machine on other than the floor, such as on the desk or shelf, only one unit of this option can be installed. Available Combinations of Paper Source Options
Specifications
Paper Size/Weight/Type | |
Paper Drawers Capacity | 75 sheets (envelope) or 55 mm (2 1/8") in height or less x 1 |
Dimensions (W x D x H) | 484 mm x 450 mm x 127 mm (19 1/8" x 17 3/4" x 5") (when attached to the main unit) |
Weight | Approx. 7 kg (15.4 lb) |
