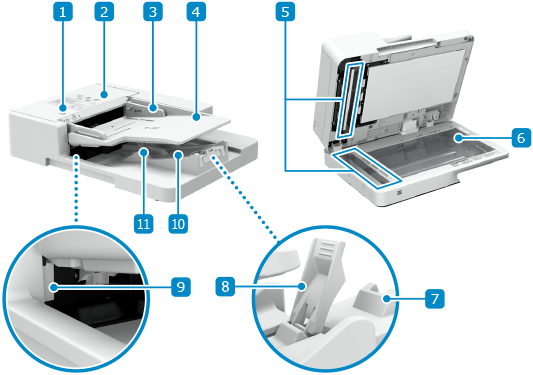

2-Sided Single Pass Feeder
Original set indicatorLights up when the original is placed on the original supply tray.
Feeder coverOpen the feeder cover when cleaning the inside of the feeder or clearing a paper jam inside the feeder.
Slide guidesAlign the slide guides against the edges of the originals to properly place the original.
Original supply trayYou can place several sheets of originals in the feeder. Placing Originals
Document feed scanning areaOriginals placed on the feeder are scanned.
Platen glassPlace books, thick paper, thin paper, and other originals that cannot be placed in the feeder on the platen glass. Placed originals are scanned in a stationary state. Placing Originals
Original output tray extensionPull out this tray to prevent the original from dropping from the original output tray when a large size original is placed.
Original stopperWhen outputting large originals, raising the original stopper prevents the originals from slipping off the tray or drooping over the end.
Original output indicatorTo prevent originals from being left in the original output tray, this indicator lights while the originals are being output, and blinks for a while after all the originals have been output.
Original output trayScanned originals are output to the original output tray.
Original retainerLower this part to output the original neatly.
IMPORTANT
Do not place objects on the original output tray. This can damage the originals.
Do not forcefully push the feeder to close when placing a book, magazine, or other thick original on the platen glass.
NOTE
If the following symptoms occur when using the feeder, clean the feeder: Cleaning the Feeder
Originals become dirty
Originals frequently jam
Printouts appear smudged after scanning, copying, or sending faxes
