Long Sheet Feeding Tray-A and Long Sheet Catch Tray-F
[Asia/Oceania][Americas]
You can print on Long Sheet paper by using any of the following combinations of optional equipment and loading the paper in the multi-purpose tray.
Long Sheet Feeding Tray-A and Long Sheet Catch Tray-F
Long Sheet Feeding Tray-A and Inner Finisher-N
Long Sheet Feeding Tray-A, the buffer pass unit, and Staple Finisher-AH, Staple Finisher Lite-B (for the Americas only), or Booklet Finisher-AH

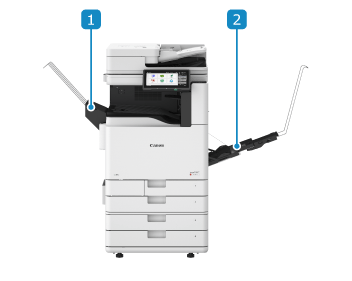

Names of Parts and Their Functions
Long Sheet Catch Tray-FOutputs printed and copied paper.
Long Sheet Catch Tray-F can be used when the optional 1st Copy Tray Kit-C is installed. It cannot be used in any other combination.
* In Asia/Oceania, 1st Copy Tray Kit-C is standard equipped depending on the region.
Long Sheet Feeding Tray-AAttach to the multi-purpose tray, and load paper. Load one sheet at a time.
Installing and Removing Long Sheet Feeding Tray-A

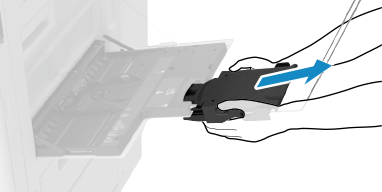

To remove the Long Sheet feeding tray, pull it out while pressing the right and left lock release buttons.

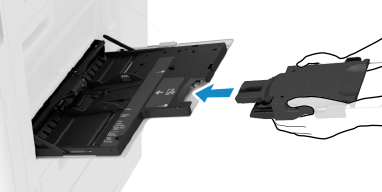

To install the Long Sheet feeding tray, gently insert it onto the multi-purpose tray until you hear a click.
Specifications
Paper Size, Type, and Basis Weight | Long Sheet Feeding Tray-A Same as "Multi-Purpose Tray" of the main unit Usable Paper Long Sheet Catch Tray-F All paper that can pass through the machine Usable Paper |
Paper Feeding Method and Paper Capacity | Long Sheet Feeding Tray-A Long Sheet paper：1 sheet (with horizontal length of UP to 1,200 mm (47 1/4")) Other than above: Same as "Multi-Purpose Tray" of the main unit Basic Specifications |
Output Capacity | When Long Sheet Catch Tray-F is installed Long Sheet paper：1 sheet (with horizontal length of UP to 1,200 mm (47 1/4")) Other than above: Same as "Inner Tray Capacity" of the main unit Basic Specifications When Inner Finisher-N is installed Same as "Output Tray Capacity (Tray B)" of Inner Finisher-N Inner Finisher-N and Inner Puncher-D When Staple Finisher-AH, Staple Finisher Lite-B (for the Americas only), or Booklet Finisher-AH is installed*1 Long Sheet paper: 1 sheet (with horizontal length of up to 1,200 mm (51 1/4")) |
Dimensions (W x D x H) | Long Sheet Feeding Tray-A 522 mm x 150 mm x 345 mm (20 5/8" x 5 7/8" x 13 5/8") Long Sheet Catch Tray-F 357 mm x 270 mm x 434 mm (14 1/8" x 10 5/8" x 17 1/8") |
Weight | Long Sheet Feeding Tray-A Approx. 0.3 kg (0.7 lb) Long Sheet Catch Tray-F Approx. 0.62 kg (1.4 lb) |
*1Long Sheet paper is output to the top of the buffer pass unit and the finisher.
