Long Sheet Feeding Tray-A and Long Sheet Catch Tray-F

You can print on Long Sheet paper by using any of the following combinations of optional equipment and loading the paper in the multi-purpose tray.
Long Sheet Feeding Tray-A and Long Sheet Catch Tray-F
Long Sheet Feeding Tray-A and Inner Finisher-N
Names of Parts and Their Functions
Specifications

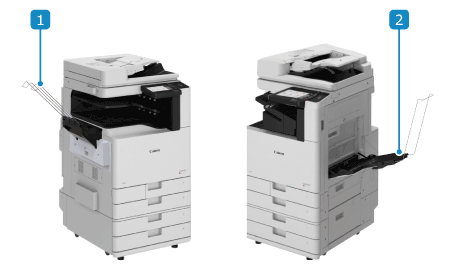

Names of Parts and Their Functions

Long Sheet Catch Tray-F
Outputs printed and copied long sheet paper.
Used when the 1st copy tray kit is attached.
Long Sheet Feeding Tray-A
Attach to the multi-purpose tray, and load paper. Load one sheet at a time.
Installing and Removing Long Sheet Feeding Tray-A

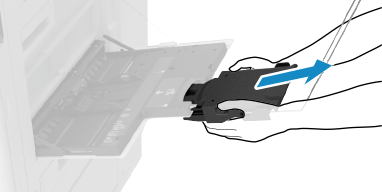

To remove the Long Sheet feeding tray, pull it out while pressing the right and left lock release buttons.

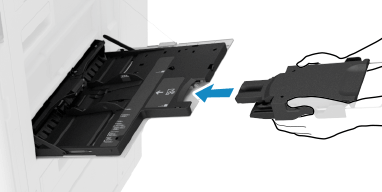

To install the Long Sheet feeding tray, gently insert it onto the multi-purpose tray until you hear a click.

Specifications

Paper Size, Type, and Basis Weight
Long Sheet Feeding Tray-A
Same as "Multi-Purpose Tray" of the main unit Usable Paper
Long Sheet Catch Tray-F
All paper that can pass through the machine Usable Paper
Paper Feeding Method and Paper Capacity
Long Sheet Catch Tray-F
Long Sheet paper: 1 sheet (with horizontal length of UP to 1,200 mm (47 1/4"))
Other than above: Same as "Multi-Purpose Tray" of the main unit Basic Specifications
Output Capacity
When Long Sheet Catch Tray-F is installed
Long Sheet paper: 1 sheet (with horizontal length of UP to 1,200 mm (47 1/4"))
Other than above: Same as "Multi-Purpose Tray" of the main unit Basic Specifications
When Inner Finisher-N is installed
Same as "Output Tray Capacity (Tray B)" of Inner Finisher-N Inner Finisher-N and Inner Puncher-D
Dimensions
(W x D x H)
Long Sheet Feeding Tray-A
522 mm x 150 mm x 345 mm (20 5/8 x 5 7/8 x 13 5/8)
Long Sheet Catch Tray-F
357 mm x 270 mm x 434 mm (14 1/8" x 10 5/8" x 17 1/8")
Weight
Long Sheet Feeding Tray-A
Approx. 0.3 kg (0.7 lb)
Long Sheet Catch Tray-F
Approx. 0.7 kg (1.5 lb)
