Front Side
Output tray
Printed paper is output to the output tray.
Control Panel
The control panel consists of numeric keys, a display, status indicators, etc. You can perform all the operations and specify settings from the control panel.
Paper drawer
Load the type of paper you frequently use into the paper drawer.
Power switch
Press the power switch to turn ON and turn OFF the machine.
Right cover of the main unit
Open the right cover when clearing paper jams. Clearing Paper Jams
Multi-purpose tray
Load the paper into the multi-purpose tray when you want to temporarily use a type of paper different from that which is loaded in the paper drawer.
Right cover of the paper drawer
Open this when a paper jam occurs.

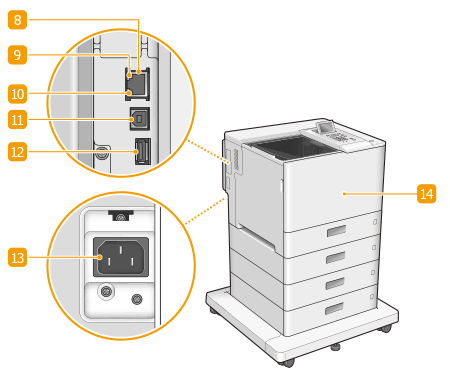

LAN port
Connect a LAN cable when connecting the machine to a wired LAN router, etc. Setting up the Network Environment
ACT indicator
The ACT indicator blinks while data is being sent or received.
LNK indicator
The LNK indicator blinks green when the machine is properly connected to a network.
USB port (for computer connection)
Connect a USB cable when connecting the machine and a computer.
The USB port (for computer connection) supports USB 2.0.
USB memory port (for USB device connection)
You can connect devices such as a USB memory device to the machine. Connecting a USB Memory Device
The machine can supply a maximum power of 5 V 500 mA. Connecting a device that requires more power may damage the machine.
Some types of memory media may not be able to save data correctly.
The USB port (for USB device connection) supports USB 2.0.
Power socket
Connect the power cord.
Front cover
Open to replace the toner cartridge or the waste toner container. Replacing the Toner Cartridge
Connecting a USB Memory Device
You can connect a USB memory device to the USB port located on the left side of the machine, and directly print data from the USB memory device.
 |
Make sure that the USB memory device is oriented properly when connecting it to the machine. If it is not connected properly, it may cause the USB memory device or machine to malfunction. Make sure to follow the proper procedure when removing the USB memory device. Inserting/Removing Memory Media Failure to do so may cause the USB memory device or machine to malfunction. You can use a USB memory device with a FAT32 (up to 32 GB) or exFAT (up to 2 TB) file system. |
 |
Unsupported devices and usagesMemory media with security functions Memory media that does not meet the USB specification Memory card readers connected via USB Connecting memory media via an extension cable Connecting memory media via a USB hub |
