Collating Prints
You can select Finishing modes to collate print output in various ways, by pages or print sets.
For information on the optional products required to use this function, see "Optional Products Required for Each Function."
As an example, the procedure for printing files that are stored in a Mail Box is explained in this section.
|
IMPORTANT
|
|
This mode can be used only for printing a file stored in a mail box or a PDF file.
If you set the output destination to the High Capacity Stacker-G1, this mode can be used only for printing a file stored in a mail box.
The Saddle Stitch and Fold modes can be used only for printing a file stored in a mail box.
Be sure to correctly set the paper type. If the type of paper is not set correctly, it could adversely affect the quality of the image. Moreover, the fixing unit may become dirty, or the paper could jam, and a service repair may be needed.
The Finishing modes cannot be set if custom size, envelopes, transparencies/clear film, vellums, or labels is selected.
|
Specifying the Finishing Mode
1.
Press
→ [Access Stored Files] → [Mail Box].
→ [Access Stored Files] → [Mail Box].
2.
Select the desired Mail Box → select the desired file → press [Print].
3.

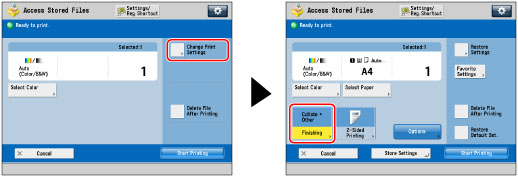

Press [Change Print Settings] → [Finishing].
To change the paper source, see "Paper Selection."
4.
Select the output destination → press [Next].
This screen is only displayed when both the finisher and the High Capacity Stacker-G1 are attached.
If this screen is not displayed, proceed to step 5.
If you select [Finisher], proceed to step 5.
If you select [Stacker], select the output destination from the drop-down list.
|
NOTE
|
|
If you select [Stacker], you can change the output destination for each job to either [Stack Area] or [Output Tray].
|
5.
Set the desired finishing mode.
 |
 |
|
When the Output Destination is set to the Finisher
|
When the Output Destination is set to the Stack Area of the Stacker
|
Select [Collate (Page Order)], [Group (Same Pages)], or [Staple].
Page Order (Collate):
When printing multiple copies of a file, you can collate the output into separate prints.
Example: Three prints of each page collated in page order
Press [Collate (Page Order)] → [OK].
Same Page (Group):
When printing multiple copies of a file, you can group each page together.
Example: Three prints of each page grouped by page
Press [Group (Same Pages)] → [OK].
Page Order (Staple):
When printing multiple copies of a file, you can staple the output for separate prints.
If you select [Corner]:
Staples the output in one location.
If you select [Double]:
Staples the output in two locations, on the left or right side.
If you select [Saddle Stitch]:
Staples the output in two locations along the saddle stitch position.
Press [Staple] → [Next].
Select the stapling type and position → press [OK].
If you select [Saddle Stitch], you can specify the following settings:
Selecting the paper
Press [Change] for <Select Paper> → select the paper source → press [OK].
Trimming the edges of the booklet
When both the Booklet Trimmer-D1 and Two-Knife Booklet Trimmer-A1 are attached to the Saddle Finisher-AM2:
Press [Trim] → select [Specify by Finishing Size] or [Specify by Trim Width] → select [Vertical Trim] or [3-Way Trim] → specify the desired finishing size or trim width → press [OK] → [OK].
When only the Booklet Trimmer-D1 is attached to the Saddle Finisher-AM2:
Press [Trim].
Adjusting the trim position
When both the Booklet Trimmer-D1 and Two-Knife Booklet Trimmer-A1 are attached to the Saddle Finisher-AM2:
Press [Trim] → [Adjust Trim Position] → adjust the trim position using [-] or [+] → press [OK] → [OK].
When only the Booklet Trimmer-D1 is attached to the Saddle Finisher-AM2:
Press [Adjust] → [Adjust Trim Width] → specify the trim width →press [OK] → [Close].
Adjusting the strength of the saddle press
Press [Saddle Press] → adjust the strength of the saddle press → press [OK].
Adding a cover
Press [Add Cover] → select whether to print on the cover → press [OK].
If you feed cover paper from the Document Insertion Unit-M1, select [Leave Blank].
Changing the saddle stitch position
When both the Booklet Trimmer-D1 and Two-Knife Booklet Trimmer-A1 are attached to the Saddle Finisher-AM2:
Press [Change Fold/Stitch Pos.] → select the paper size → adjust the saddle stitch position using [-] or [+] → press [OK] → [Close].
When only the Booklet Trimmer-D1 is attached to the Saddle Finisher-AM2:
Press [Adjust] → [Change Fold/Stitch Pos.] → select the paper size → adjust the saddle stitch position using [-] or [+] → press [OK] → [Close].
When the Booklet Finisher-T1 is attached:
Press [Change Fold/Stitch Pos.] → select the paper size → adjust the saddle stitch position using [-] or [+] → press [OK] → [OK].
|
IMPORTANT
|
|
The paper used for the cover page must be the same size as that which is used for the main document.
If you load preprinted paper to use as the cover page into the document insertion unit, you must load the paper face up.
The following shows the paper weight that you can use when the Saddle Finisher-AM2 is attached.
For the cover page and main document: 52 g/m2 to 300 g/m2 (14 lb bond to 110 lb cover)
The following shows the paper weight that you can use when the Booklet Finisher-T1 is attached.
For the main document: 60 g/m2 to 220 g/m2 (16 lb bond to 80 lb cover)
For the cover page: 60 g/m2 to 256 g/m2 (16 lb bond to 140 lb index)
The [Saddle Stitch] mode can be set only if 2-Sided Printing is set.
The accuracy of folds created in the Saddle Stitch mode may vary depending on the paper type and the number of sheets.
The Trim mode can be set if the Booklet Trimmer-D1 or the Two-Knife Booklet Trimmer-A1 is attached to the Saddle Finisher-AM2.
|
Other Modes Compatible with Finishing
Hole Punch
The machine punches two or more holes in the output.
|
NOTE
|
|
The number of holes that can be punched varies depending on the type of puncher unit of the attached finisher.
|
Fold
The output is described below.
Z-Fold
The machine Z-folds A3 or A4R paper into A4 or A5 size, respectively.
|
IMPORTANT
|
|
If you specify the Z-Fold mode with the Staple mode, and the number of sheets that are Z-folded exceeds 10, the prints will be collated, but not stapled.
|
C-Fold
The A4R paper is folded three times in a C-fold.
|
IMPORTANT
|
|
If you want the printed side to be folded inside, select [Up (Reverse Order)] for [Face Up/Face Down].
|
Half Fold
The machine folds A4R paper into A5 size.
Accordion Z-Fold
The A4R paper is folded outward three times.
|
IMPORTANT
|
|
If you want the printed side to be folded inside, select [Up (Reverse Order)] for [Face Up/Face Down].
|
Saddle Fold
If the Saddle Finisher-AM2 is attached, a maximum of five sheets can be saddle folded together, and then output.
If the Booklet Finisher-T1 is attached, a single sheet of paper is saddle folded at a time, and then output.
|
IMPORTANT
|
|
The Saddle Stitch mode can be set only if 2-Sided Printing is set.
If the Saddle Finisher-AM2 is attached, the following paper sizes can be saddle folded: 330 mm x 483 mm, 305 mm x 457 mm, 320 mm x 450 mm (SRA3), A3, B4, A4R, 13" x 19", 12" x 18", 12 5/8" x 17 11/16", 11" x 17", LGL, LTRR, or custom size (210 mm x 279.4 mm to 330.2 mm x 487.7 mm (8 1/4" x 11" to 13" x 19 1/4"))
If the Booklet Finisher-T1 is attached, the following paper sizes can be saddle folded: 305 mm x 457 mm, A3, B4, A4R, 12" x 18", 11" x 17", LGL, or LTRR
|
Double Parallel Fold
The A4R paper is folded outward 4 times.
|
NOTE
|
|
If you want the printed side to be folded inside, select [Up (Reverse Order)] for [Face Up/Face Down].
|
Rotate 90 Degrees
If the prints are of the same size, the sheets are automatically collated into sets arranged in page order. These sets are output in alternating directions as follows:
|
IMPORTANT
|
|
You can only set [Rotate 90 Degrees] in the following cases:
If the paper size is set to [Auto] on the Paper Size Selection screen
If the paper size compatible with Rotate 90 Degrees is loaded in both the horizontal and vertical directions
If [Paper Drawer Auto Selection On/Off] for the selected paper source is set to 'On' (See "Enabling Paper Drawer Auto Selection.")
If there is no paper which can be rotated, the output will be collated.
|
Offset
If you set [Offset], you can specify the number of print sets to offset. The prints are slightly offset vertically in the output tray as shown below.
Face Up/Face Down
You can specify whether the printed sheets are face up or face down, press [Face Up/Face Down] and select from the following:
|
[Auto]:
|
If you are printing a single page original, the printed sheets are output face up. Otherwise, the printed sheets are output face down.
|
|
[Face Down (Normal Order)]:
|
Printed sheets are always output face down.
|
|
[Face Up (Reverse Order)]:
|
Printed sheets are always output face up.
|
Trim
When both the Booklet Trimmer-D1 and Two-Knife Booklet Trimmer-A1 are attached:
The machine trims the fore edges and top/bottom of prints in the Saddle Stitch mode.
When only the Booklet Trimmer-D1 is attached:
The machine trims the fore edges of prints in the Saddle Stitch mode.
|
IMPORTANT
|
|
You can set [Trim] only if you select [Saddle Stitch].
|
|
NOTE
|
|
If both the Booklet Trimmer-D1 and Two-Knife Booklet Trimmer-A1 are attached, you can select the fore-edge trimming individually.
|
Saddle Press
This mode enables you to compress a saddle stitched booklet spine.
|
IMPORTANT
|
|
The Saddle Press mode is set automatically when you select [Saddle Stitch].
|
|
NOTE
|
|
To make sure that the [Saddle Press] setting is effective, you must saddle stitch more than nine sheets of paper (including one cover sheet).
|
Specify Number of Copies to Stack
You can specify the number of print sets to stack to the stacker.
|
IMPORTANT
|
|
You can set [Specify No. of Copies Stack] only if you select [Stack Area] for the <Stacker Output Destination>.
|
Finishing features available with each optional unit
: Available-: Unavailable
|
Optional Unit
|
Collate (Page Order)
|
Group (Same Pages)
|
Offset
|
Rotate 90 Degrees
|
Staple
|
Hole Punch
|
Multiple Hole Punch
|
Fold
|
Trim
|
Face Up/Face Down
|
Saddle Press
|
||||
|
Corner
|
Double
|
Saddle Stitch
|
Saddle Fold
|
Z-Fold, C-Fold, Half Fold, Accordion Z-Fold, Double Parallel Fold
|
Fore Edges of Booklet
|
Top/Bottom of Booklet
|
|||||||||
|
None
|
|
|
-
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
-
|
|
Output Tray-A1
|
|
|
-
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
-
|
|
Finisher-AM1
|
|
|
|
-
|
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
-
|
|
Finisher-AM1 and Puncher Unit
|
|
|
*1 |
-
|
|
|
-
|
*1 |
-
|
-
|
-
|
-
|
-
|
|
-
|
|
Finisher-AM1, Professional Puncher-B1, and Professional Puncher Integration Unit-C1
|
|
|
*1 |
-
|
|
|
-
|
*1 |
*1 |
-
|
-
|
-
|
-
|
|
-
|
|
Finisher-AM1 and Paper Folding Unit-F1
|
|
|
|
-
|
|
|
-
|
-
|
-
|
-
|
|
-
|
-
|
|
-
|
|
Saddle Finisher-AM2
|
|
|
|
-
|
|
|
|
-
|
-
|
|
-
|
-
|
-
|
|
|
|
Saddle Finisher-AM2 and Puncher Unit
|
|
|
*1 |
-
|
|
|
|
*1 |
-
|
|
-
|
-
|
-
|
|
|
|
Saddle Finisher-AM2, Professional Puncher-B1, and Professional Puncher Integration Unit-C1
|
|
|
*1 |
-
|
|
|
|
*1 |
*1 |
|
-
|
-
|
-
|
|
|
|
Saddle Finisher-AM2 and Paper Folding Unit-F1
|
|
|
|
-
|
|
|
|
-
|
-
|
|
|
-
|
-
|
|
|
|
Saddle Finisher-AM2 and Booklet Trimmer-D1
|
|
|
|
-
|
|
|
|
-
|
-
|
|
-
|
|
-
|
|
|
|
Saddle Finisher-AM2, Booklet Trimmer-D1, and Two-Knife Booklet Trimmer-A1
|
|
|
|
-
|
|
|
|
-
|
-
|
|
|
|
|
|
|
|
High Capacity Stacker-G1
|
|
|
*2 |
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
-
|
|
Staple Finisher-T1
|
|
|
|
-
|
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
-
|
|
Staple Finisher-T1 and External Hole Puncher
|
|
|
|
-
|
|
|
-
|
|
-
|
-
|
-
|
-
|
-
|
|
-
|
|
Booklet Finisher-T1
|
|
|
|
-
|
|
|
|
-
|
-
|
|
-
|
-
|
-
|
|
-
|
|
Booklet Finisher-T1 and External Hole Puncher
|
|
|
|
-
|
|
|
|
|
-
|
|
-
|
-
|
-
|
|
-
|
*1 When using custom paper sizes, and both the Hole Punch mode and the Offset mode are set, the edge of paper may become curled or creased. In this case, set the Offset mode to 'Off'.
*2 This mode is available only if you set the output destination to [Stack Area] of the stacker.
Maximum number of sheets you can staple
The maximum number of sheets that can be stapled differs, depending on the paper size.
When the Finisher-AM1 or Saddle Finisher-AM2 is attached
|
Paper Size
|
Corner
|
Double
|
Saddle Stitch*
|
|
330 x 483 mm
|
-
|
-
|
25 sheets
|
|
305 x 457 mm
|
-
|
-
|
25 sheets
|
|
SRA3
|
-
|
-
|
25 sheets
|
|
A3
|
50 sheets
|
50 sheets
|
25 sheets
|
|
A4R
|
50 sheets
|
50 sheets
|
25 sheets
|
|
A4
|
100 sheets
|
100 sheets
|
-
|
|
A5R
|
-
|
-
|
-
|
|
A5
|
-
|
-
|
-
|
* You can set Saddle Stitch only if the Saddle Finisher-AM2 is attached.
When the Staple Finisher-T1 or Booklet Finisher-T1 is attached
|
Paper Size
|
Corner
|
Double
|
Saddle Stitch*
|
|
305 x 457 mm (12" x 18")
|
-
|
-
|
16 sheets
|
|
SRA3 (12 5/8" x 17 11/16")
|
-
|
-
|
-
|
|
A3
|
30 sheets
|
30 sheets
|
16 sheets
|
|
B4
|
30 sheets
|
30 sheets
|
16 sheets
|
|
A4R
|
30 sheets
|
30 sheets
|
16 sheets
|
|
A4
|
50 sheets
|
50 sheets
|
-
|
|
B5R
|
-
|
-
|
-
|
|
B5
|
50 sheets
|
50 sheets
|
-
|
|
A5R
|
-
|
-
|
-
|
|
A5
|
-
|
-
|
-
|
|
11" x 17"
|
30 sheets
|
30 sheets
|
16 sheets
|
|
LGL
|
30 sheets
|
30 sheets
|
16 sheets
|
|
LTRR
|
30 sheets
|
30 sheets
|
16 sheets
|
|
LTR
|
50 sheets
|
50 sheets
|
-
|
|
EXEC
|
50 sheets
|
50 sheets
|
-
|
|
STMTR
|
-
|
-
|
-
|
|
STMT
|
-
|
-
|
-
|
* You can set Saddle Stitch only if the Booklet Finisher-T1 is attached.
|
NOTE
|
|
For information on the original orientation and paper orientation when performing stapling, see "Relationship Between the Original Orientation and Paper Orientation."
|
|
IMPORTANT
|
|
If you set the Staple, Hole Punch, or Z-Fold mode, the side of the paper which is printed on will always be output face down.
|
|
NOTE
|
|
For information on optional products, see the following:
If [Finishing] is not set, the settings are the same as when [Group (Same Pages)] is set.
You can display the detailed information of the selected paper by pressing [Details].
|
