Setting IPv4 Address


The machine's IPv4 address can be either assigned automatically by a dynamic IP addressing protocol or entered manually. Make sure that the connectors of the LAN cable are firmly inserted into the ports (Connecting to a Wired LAN). You can test the network connection if necessary.

Setting IPv4 Address

1
Tap <Menu>.
2
Tap <Network Settings> .
If the logon screen appears, enter the correct ID and PIN using the numeric keys, and then press . Logging on to the Machine
3
Tap <TCP/IP Settings> <IPv4 Settings> <IP Address Settings>.
4
Configure IP address settings.
 <Auto Acquire>
Select to automatically assign an IP address via DHCP. When <Auto Acquire: On> is displayed, automatic addressing is enabled.
 <Manually Acquire>
Select to configure the IP address settings by manually entering an IP address. In order to select this option, <Auto Acquire> must be set to <Off>.
 <Check Settings>
Select when you want to view the current IP address settings.
Automatically assigning an IP address
1
Tap <Auto Acquire>  <Select Protocol>.
2
Tap <DHCP>.

If you do not want to use DHCP to assign an IP address
Select <Off>. If you select <DHCP> when this service is unavailable, the machine will waste time and communications resources searching the network for this service.
3
Check that <Auto IP> is set to <On>.
If <Off> is selected, change the setting to <On>.
4
Tap <Apply>.
IP addresses assigned via DHCP override the address obtained via Auto IP.
Manually entering an IP address
1
Check that <Auto Acquire> is set to <Off>.
If <On> is displayed, tap <Auto Acquire>  set both <Select Protocol> and <Auto IP> to <Off>.
2
Tap <Manually Acquire>.
3

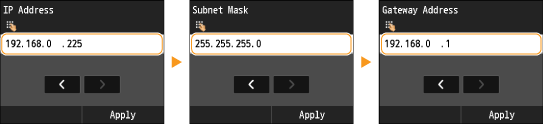

Specify the IP address, subnet mask, and gateway address (or default gateway).
Specify the settings in the following order: <IP Address>  <Subnet Mask>  <Gateway Address>.
Enter the setting using the numeric keys, and tap <Apply> on each screen.
5
Restart the machine.
Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.
Checking whether the settings are correct
Make sure that the Remote UI screen can be displayed with your computer. (Starting Remote UI) If a computer is not available, you can check the connection by using the operation panel (Testing the Network Connection).

Testing the Network Connection

1
Tap <Menu>.
2
Tap <Network Settings> .
If the logon screen appears, enter the correct ID and PIN using the numeric keys, and then press . Logging on to the Machine
3
Tap <TCP/IP Settings> <IPv4 Settings> <PING Command>.
4
Enter the IPv4 address of another device on the network, and tap <Apply>.
If a proper connection has been established, the result is displayed as shown above.
14CE-06R
