Customizing the Home Screen

You can rearrange buttons that are displayed in the Home Screen so they are easier to use. You can also add/delete buttons.

Adding Buttons

You can add frequently used settings that are registered for <Copy>, <Fax>, and <Scan> as shortcut buttons to the Home Screen.
You can register up to 12 frequently used settings.

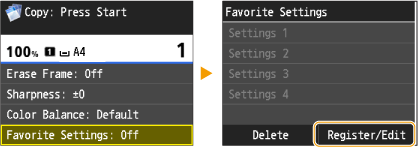

 Adding Buttons from <Copy> and <Fax>

Adding Buttons from <Scan>

Adding Buttons from <Home Screen Settings>

Deleting Buttons

You can cancel display of frequently used settings for <Copy>, <Fax>, or <Scan> in the Home Screen if they are no longer used frequently.
If you delete a frequently used setting itself that is registered to be displayed in the Home Screen for <Copy>, <Fax>, or <Scan>, the Home Screen button it is registered is also deleted.
1
Tap <Home Screen Settings>.
If a login screen is displayed, enter the ID and PIN with the numeric keys and press . Logging on to the Machine
You can also use with <Menu>  <Preferences>  <Display Settings>  <Home Screen Button Display Settings>.
2
Tap <Select Button to Display>.
3

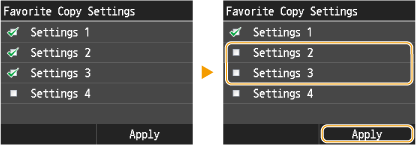

Tap frequently used settings in Copy/Fax/Scan.
4
Clear the check box for all settings to cancel their display in the Home Screen and tap <Apply>.
5
Tap <OK>.
The specified button is removed, and a space appears.
A space appears where the button was, and any buttons after it remain in their arrangement. Tap <Home Screen Settings>  <Insert and Delete Blank> to delete spaces. Tap a space and then <Delete> to delete the space and allow buttons after it to shift place.

Changing the Arrangement of Buttons

You can change where buttons in the Home Screen are displayed and on which page as needed.
1
Tap <Home Screen Settings>.
If a login screen is displayed, enter the ID and PIN with the numeric keys and press . Logging on to the Machine
You can also use with <Menu>  <Preferences>  <Display Settings>  <Home Screen Button Display Settings>.
2
Tap <Set Display Order>.
3
Change the displayed page as needed, and then tap the button to move.
The tapped button is highlighted.
4
Tap <Previous>/<Next> to move the button until it is displayed at the desired spot.
Long touching <Previous>/<Next> moves a button ahead or back continuously.
After a button is selected, flicking the screen or using / to change pages deselects the button.
5
Tap <Apply>.
The button's placement is confirmed.
Adding blank buttons
Inserting a space at a button's current location moves the button back one spot. Tap <Home Screen Settings>  <Insert and Delete Blank> to insert spaces. Tap the button to move and then <Insert> to insert a space where the button is and move the button back one spot.
If frequently used settings are deleted or renamed from the Remote UI, tapping the button remaining in the Home Screen will not display the settings. Cancel display of the button in the Home Screen, and then register it again with a new name if necessary.
