Various Scan Settings

Specifying/Registering Scan Sizes

You can manually specify a scan size when scanning originals that cannot be detected using the [Auto] mode, such as transparencies, or originals smaller than STMT size. You can also store frequently used scan size settings.

Specifying the Scan Size Selecting a Paper Size

You can specify a paper size for scanning.

If you want to scan an 11" x 17" original with an image that extends all the way to the edges without the periphery of the original being cut off, place the original on the platen glass → press [11" x 17"+].

Specifying the Scan Size Manually

You can enter a custom X and Y value to specify the size for scanning.

2-Sided Original

This mode enables you to set a two-sided original in the feeder, and scan both sides at once.

Book → 2 Pages

This mode enables you to scan books and other originals with facing pages and send the pages individually.

Different Size Originals

This mode enables you to scan different size originals with the same widths (11" x 17" and LTR, or LTRR and STMT, etc.) or different widths (11" x 17" and LGL, or LTR and STMT, etc.) together.

Changing the Zoom Ratio

You can enlarge or reduce the original to send. You can also set the machine to automatically adjust the zoom ratio.

Preset Zoom

You can use preset scan (zoom) ratios to enlarge or reduce standard size originals to other standard sizes.

Zoom by Percentage

You can enlarge or reduce originals by any scan ratio in 1% increments. The same scan ratio is used for the horizontal and vertical axes.

Erase Frame

This mode enables you to erase the shadows, lines, and binding marks that appear when scanning various types of originals.

The following three Erase Frame modes are available:

Erase Original Frame

This mode deletes the dark borders and frame lines that appear around the scanned image if the original is smaller than the specified paper size. You can also use this mode to create a blank border around the edge of the scanned image.

Erase Book Frame

This mode deletes the dark borders, as well as centre and contour lines that appear when you scan an original such as a magazine or a book.

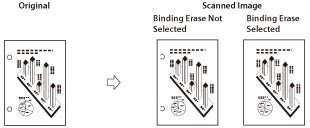

Erase Binding

This mode deletes the shadows that appear on scanned images from binding holes on originals.

Job Build

This mode enables you to scan originals that are too many to be placed at once, by dividing them into multiple batches. You can use both the feeder and the platen glass to scan.
