Paper Loading and Output

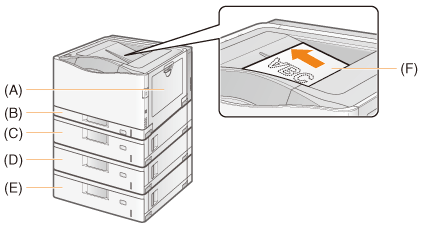

This printer has the following paper sources and output trays.
Paper Source | (A): Multi-purpose tray | |
(B): Drawer 1 | ||
(C): Drawer 2 (optional) | ||
(D): Drawer 3 (optional) | ||
(E): Drawer 4 (optional) | ||
Output Tray | (F): Output tray | Outputs paper with the printed side face-down. |
Precautions for Output Trays
Observe to the following points when handling the output trays.
Before handling the output trays, see "Important Safety Instructions." |
During 2-sided printing, do not touch the paper until it is completely output. The paper is first partially output after the front side is printed, and then it is fed again to be printed on the back side.
When using long-size paper, be sure to remove each sheet as it is output.
Paper Capacity of the Paper Sources and Output Trays
: UnavailablePaper Type | Paper Source | Output tray *1 | ||
Multi-purpose tray | Drawer 1 | Drawer 2, 3, 4 (optional) | ||
Plain paper (Ex. 64 g/m²) | Approx. 100 sheets | Approx. 250 sheets | Approx. 550 sheets | Approx. 250 sheets *2 |
Heavy paper (Ex. 128 g/m²) | Approx. 80 sheets | Approx. 200 sheets | Approx. 400 sheets | Approx. 100 sheets |
Heavy paper (Ex. 163 g/m²) | Approx. 50 sheets | | | Approx. 40 sheets |
Transparency | Approx. 50 sheets | | | Approx. 50 sheets |
Label | Approx. 40 sheets | | | Approx. 40 sheets |
Envelope | Approx. 10 sheets | | | Approx. 10 sheets |
Coated paper | Approx. 50 sheets | | | Approx. 50 sheets |
*1 | Actual paper capacity varies depending on the installation environment and paper type to be used. |
*2 | When the paper size is Legal, the paper capacity is approximately 150 sheets. |
