Removing the Packing Materials

NOTE
Store the removed packing materials.
They are required when transporting the printer for relocation or maintenance.
About the packing materials
The packing materials may be changed in form or placement, or may be added or removed without notice.

Remove all the orange tape if it is attached to the printer when performing the following procedure.

1
Pull out the paper drawer until it stops.
2
Remove the packing material.
(1) Turn it in the direction of the arrow.
(2) Remove it.
3
Set the paper drawer into the printer.
Check !
Checking if the packing materials are removed

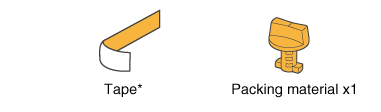

Check that the following packing materials are completely removed.
Dispose of the left packing materials according to local regulations.
*
Make sure that all the orange tape is completely removed.
Close the covers and set the paper drawer after you finish checking.
Next, perform one of the following procedures.
If you want to use the printer with optional accessories installed
Install the optional accessories before installing the printer.
"Installing the Paper Feeder"
If you want to use the printer without optional accessories installed
Install the printer.
"Installing the Printer"
113H-027
