How to Specify the Settings for E-mail Print
Before performing the setup, see "Attention (How to Specify the Settings for E-mail Print)." |
You can set e-mail print settings from the printer control panel, Remote UI or FTP client.
This section describes the procedures for registering or changing the settings using a Web browser (Remote UI).
1
Start the Remote UI, and then log in as Administrator.
2
Click [Network] under [Preferences] in the [Settings/Registration] menu.
3

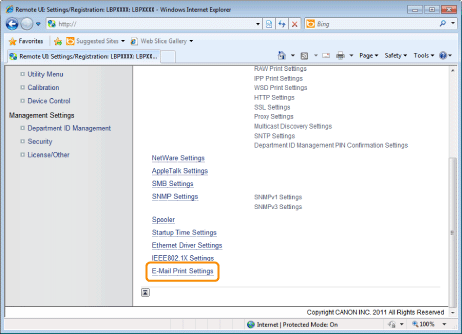

Click [E-Mail Print Settings].
4

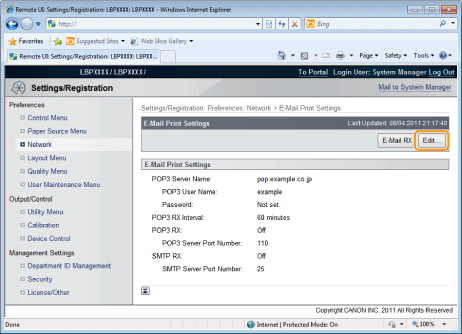

Click [Edit] on the right side of [E-Mail Print Settings].
5

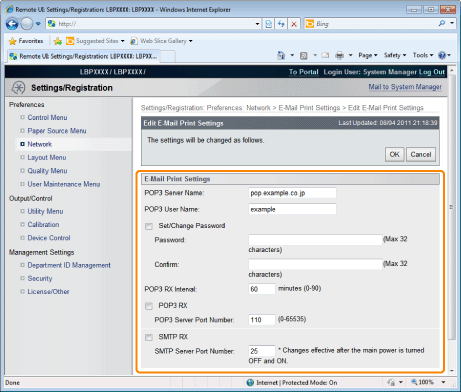

Specify the settings for the e-mail print function.
If you want to use the POP3 protocol
[POP3 Server Name] | Specifies the name or sets the IP address of the server which receives e-mails. |
[POP3 User Name] | Specifies the name of the user which receives e-mails. You can enter up to 32 alphanumeric characters. |
[Set/Change Password] | Select the check box when setting/changing the password. |
[Password] | Specifies the password for the name of the user which receives e-mails. You can enter up to 32 alphanumeric characters. |
[Confirm] | For confirmation, enter the same [Password] again. |
[POP3 RX Interval] | Set the interval for automatically connecting to the server that receives e-mail in minute units. Receive e-mail at specified intervals and print it automatically. You can set from 0 (minutes) to 90 (minutes). When it is set to 0, it does not automatically receive e-mail from the server. When it is set to 0 and when you want to connect to the server before it automatically connects to the server that receives e-mail, you can receive e-mail manually. |
[POP3 RX] | When it is checked, e-mail is relayed using POP3 protocol. |
[POP3 Server Port Number] | Specifies the port number for the server which receives e-mails. You can specify the port number between 0 and 65535. |
If you want to use the SMTP protocol
[SMTP RX] | When it is checked, e-mail is relayed using SMTP protocol and it is automatically received and printed. |
[SMTP Server Port Number] | Specifies the port number for the server which receives e-mails. You can specify the port number between 0 and 65535. |
6

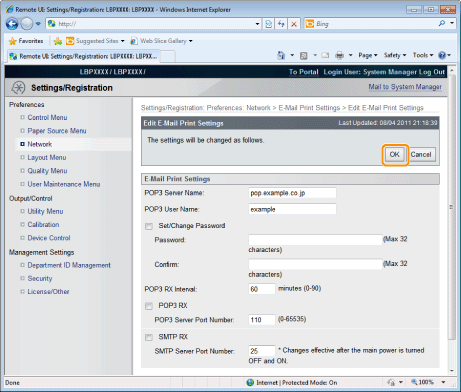

Click [OK].
