Setting Device Information
In the following cases, it is necessary to set the options of the device according to this procedure.
The device information was not retrieved during installation.
The device function and options are not set correctly in the [Device Settings] sheet.
An option of the device has been changed.
Prerequisites
Driver Installation
Settings at the device
If the device is connected via a WSD port, [Use WSD Browsing] is already set to on.
If the device is connected by specifying a standard TCP/IP port, [Retrieve Printer Mngt. Information from Host] is already set to on.
For details, refer to the manual of the device.
When starting the computer, log on as a member of Administrators.
Procedures
1.
Display [Devices and Printers] from the [Control Panel] of Windows.
2.
Right-click the icon of the device to be set → select [Printer properties] from the displayed menu.
3.

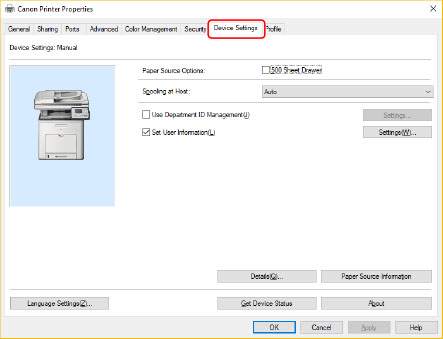

Display the [Device Settings] sheet.
4.
Click [Get Device Status].
5.
If the message "Get information from the device?" is displayed, click [Yes].
If the information has been retrieved, confirm the automatically set option configuration.
If the information is not retrieved, set the option configuration manually. Select the options attached to the device.
6.
Click [Details] → set as required.
The items in [Details] are not set automatically. If necessary, set them manually.
7.
In the [Device Settings] sheet, click [OK] or [Apply].
