Checking Status and Log for Sent and Received Documents
The statuses and communication logs for sent and received fax documents can be checked separately for sending and receiving.
|
|
|
When <Display Job Log> is set to <Off>, you cannot check the communication logs. <Display Job Log>
|
 |
|
The destinations in Manual Sending cannot be checked because they are not displayed.
|
1
Press
.
.2
Select <TX Job> or <RX Job>.
3
Check the statuses and communication logs for sent and received documents.
To check the statuses for sent and received documents
|
1
|

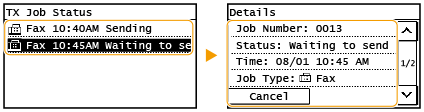

Select <Job Status> and select the document whose status you want to check.
 Displays detailed information about the document.
If you specified multiple destinations, the number of specified destinations is displayed on the screen. To check the details of specified multiple destinations, select <Number of Destinations>.
|
To check the communication logs for sent and received documents
|
1
|

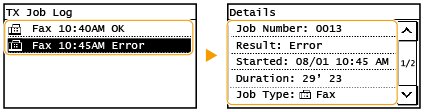

Select <Job Log> and select the document whose status you want to check.
<OK> is displayed when a document was sent or received successfully, and <Error> is displayed when a document failed to be sent or received because it was canceled or there was some error.
 Displays detailed information about the document.
 If the <Result> column shows a three-digit number
This number represents an error code. Countermeasures for Each Error Code
|
