Screens Displayed on the Control Panel

The following are the main screens of the control panel.
[Home] Screen
This screen is displayed when you press on the control panel. By default, the [Home] screen is displayed after the power is turned ON and immediately after the startup screen closes, and immediately after logging in. [Home] Screen
[Status Monitor] Screen
This screen is displayed when you press on the control panel. Use this screen to check the information of the machine, usage and logs, network settings, and error information. [Status Monitor] Screen
[Menu] Screen
This screen is displayed when you press [Menu] on the [Home] screen. Use this screen to configure the various settings of the machine. Settings Menu Items
When the System Manager ID is set, the login screen may be displayed when certain items are selected. Only users who know the System Manager ID and PIN can log in and change the settings.
[Paper Settings] Screen
This screen is displayed when you press [Paper Set.] on the [Home] screen. Use this screen to configure the various settings of the machine.
To ensure quality printing and prevent paper jams, the paper size and type must be set correctly according to the loaded paper. Specifying the Paper Size and Type
Message Display
Messages are displayed on the screen when errors occur and the machine is out of paper or toner in the toner cartridge.
If a troubleshooting solution is displayed, follow the on-screen instructions to solve the problem.
If a troubleshooting solution is not displayed, check the cause and solution by referring to the message or error code.
A Message Appears
An Error Code Is Displayed
Display example:

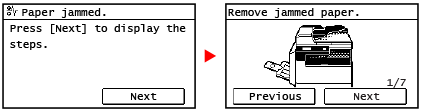

When an Error Occurs

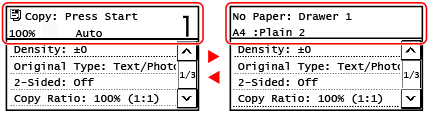

When a Message Appears at the Bottom of the Screen
If the message is too long to display at once, it may be separated into smaller segments and displayed alternately.
When [] is displayed on the top side of the screen, you can press [] to display and check the notification.
Changing the Screen Display
You can change the control panel display such as by changing the display language and units, and show or hide messages. [Display Settings]
You can invert screen colors and adjust the contrast to make the screen easier to view. [Accessibility]
Clearing the Settings Automatically
By default, if no operations are performed after a certain period of time, the settings being configured on the screen are cleared, and the [Home] screen is displayed. You can change the time until the settings are cleared and the screen that is displayed after.
[Auto Reset Time]
[Function After Auto Reset]
