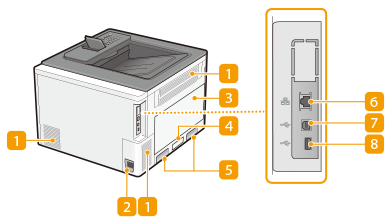

Back Side
Ventilation slot
Air from inside the machine is vented out to cool down the inside of the machine. Note that placing objects in front of the ventilation slots prevents ventilation.
Power socket
Connect the power cord.
Left cover
Open the left cover when replacing the waste toner container. Replacing the Waste Toner Container
Rating label
The label shows the serial number, which is needed when making inquiries about the machine. When a Problem Cannot Be Solved
Lift handles
Hold the lift handles when carrying the machine. Relocating the Machine
LAN port
Connect a LAN cable when connecting the machine to a wired LAN router, etc. Setting up the Network Environment
USB port (for computer connection)
Connect a USB cable when connecting the machine and a computer.
The USB port (for computer connection) supports USB 2.0.
USB port (for USB device connection)
Connect a USB device that is used with MEAP applications. Also, connect a USB memory device when exporting or importing the settings of the machine. <Data Management>
The machine can supply a maximum power of 5 V 500 mA. Connecting a device that requires more power may damage the machine.
The USB port (for USB device connection) supports USB 2.0.
