Paper Jams in the Feeder
Remove the original jammed inside or at the rear side of the feeder. If the original tears, be sure to remove the parts so that no pieces remain.
* The feeder is optional.
1
Remove any originals from the original supply tray.
2
Check whether an original is jammed in the feeder cover.

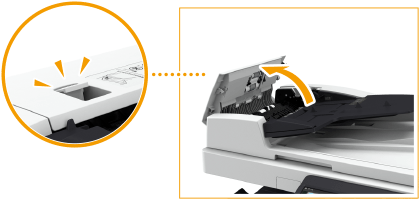

1 | Pull the lever to open the feeder cover.  |
2 | If an original is jammed, gently pull it out in the direction of the arrow.  |
3
Check whether an original is jammed in the original output tray.

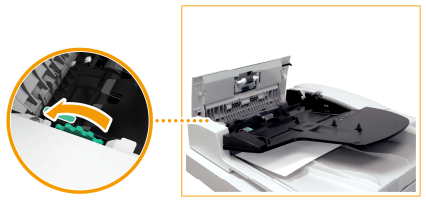

1 | Turn the green knob counterclockwise.  |
2 | If an original is jammed, gently pull it out in the direction of the arrow.  |
4
Check whether an original is jammed inside the inner cover of the feeder.
1 | Open the inner cover of the feeder.  |
2 | If an original is jammed, gently pull it out in the direction of the arrow.  |
3 | Close the inner cover of the feeder. |
5
After removing all jammed originals, close the feeder cover.
6
Lift up the feeder, and check whether there is a jammed original.
1 | Lift up the feeder, and check the position indicated by  . |
2 | If an original is jammed, gently pull it out in the direction of the arrow.  |
7
Return the feeder to its original position.
* Continue following the instructions on the screen to proceed with the interrupted operation or continue clearing paper jams.
 |
When closing the feeder, take care that your eyes are not exposed to light emitted through the platen glass. |
 |
If Paper Jams Occur RepeatedlyCheck the status of the machine and original. Paper Jams That Occur Repeatedly |
