1st Copy Tray Kit-C

When the finisher is not installed, install the optional 1st Copy Tray Kit-C. Printed and copied paper is output to the output tray.
* In Asia/Oceania, 1st Copy Tray Kit-C is standard equipped depending on the region.

Available Finishing Functions

The finishing functions that are available when 1st Copy Tray Kit-C is installed are shown below.

Sorting Functions

Collate

Group

Rotate 90 Degrees

NOTE

For details about the finishing functions, see the following:

Options with Finishing Functions

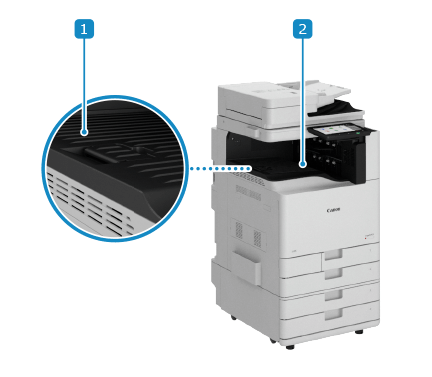

Names of Parts and Their Functions

Output tray guide

Raise the guide to prevent paper from falling out of the output tray.

Output tray

Outputs printed and copied paper.

Specifications

Paper Size, Type, and Basis Weight	All paper that can pass through the machine Usable Paper
Output Tray Capacity	1-Sided A4, B5, B5R, A5 ,A5R, A6R, 16K, LTR, STMT, STMTR: 250 sheets (64 g/m² (17 lb bond), 75 g/m² (20 lb bond), 80 g/m² (21 lb bond)) A3, B4, A4R, 320 mm x 450 mm (12 5/8" x 17 11/16") (SRA3), 305 mm x 457 mm (12" x 18"), 16KR, 8K, LTRR, LGL, 11" x 17", EXEC: 100 sheets (64 g/m² (17 lb bond), 75 g/m² (20 lb bond), 80 g/m² (21 lb bond)) 2-Sided A4, B5, B5R, A5 ,A5R, A6R, 16K, LTR, STMT, STMTR: 200 sheets (64 g/m² (17 lb bond), 75 g/m² (20 lb bond), 80 g/m² (21 lb bond)) A3, B4, A4R, 320 mm x 450 mm (12 5/8" x 17 11/16") (SRA3), 305 mm x 457 mm (12" x 18"), 16KR, 8K, LTRR, LGL, 11" x 17", EXEC: 100 sheets (64 g/m² (17 lb bond), 75 g/m² (20 lb bond), 80 g/m² (21 lb bond))
Dimensions (W x D x H)	422 mm x 485 mm x 78 mm (16 5/8" x 19 1/8" x 3 1/8")
Weight	Approx. 0.9 kg (2.0 lb)
