Cassette Feeding Unit-AZ
When frequently using paper of varying sizes or types or when loading large quantities of paper at a time, install the optional Cassette Feeding Unit-AZ. This option reduces the work of loading paper.

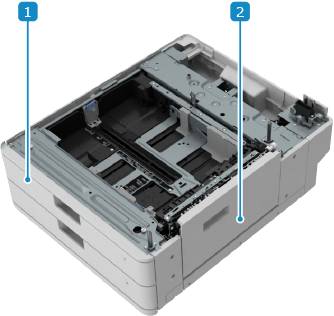

Names of Parts and Their Functions
Paper drawerLoad the paper. Loading Paper in the Paper Drawer
Lower-right cover of the paper drawerOpen this when a paper jam occurs.
Specifications
Paper Size, Type, and Basis Weight | |
Paper Feeding Method and Paper Capacity | Paper Drawer x 2 640 sheets per drawer (64 g/m² (17 lb bond)) 550 sheets per drawer (75 g/m² (20 lb bond), 80 g/m² (21 lb bond)) Transparencies: 100 sheets per drawer |
Dimensions (W x D x H) | 565 mm x 688 mm x 248 mm (22 1/4" x 27 1/8" x 9 3/4") (when attached to the main unit) |
Weight | Approx. 22.7 kg (50.0 lb) |
