High Capacity Cassette Feeding Unit-G
When frequently printing large volume documents, install the optional High Capacity Cassette Feeding Unit-G. This option reduces the work of loading paper.
* You can load A4 or letter size paper only.

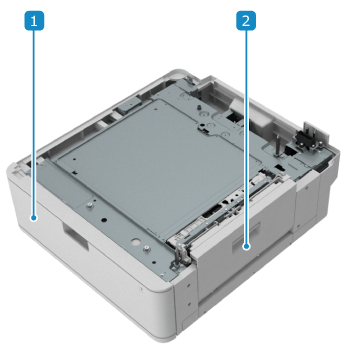

Names of Parts and Their Functions
Paper drawerLoad the paper. Loading Paper in High Capacity Cassette Feeding Unit-G (Option)
Lower-right cover of the paper drawerOpen this when a paper jam occurs.
Specifications
Paper Size, Type, and Basis Weight | |
Paper Feeding Method and Paper Capacity | Paper Drawer x 1 2,850 sheets (64 g/m² (17 lb bond)) 2,450 sheets (75 g/m² (20 lb bond), 80 g/m² (21 lb bond)) Other than above: Right side of paper drawer: Height of 134 mm (5 1/4") Left side of paper drawer: Height of 122 mm (4 7/8") |
Dimensions (W x D x H) | 565 mm x 688 mm x 248 mm (22 1/4" x 27 1/8" x 9 3/4") (when attached to the main unit) |
Weight | Approx. 29.5 kg (65 lb) |
