Long Sheet Feeding Tray-A

You can print on Long Sheet paper by using any of the following combinations of optional equipment and loading the paper in the multi-purpose tray.
Long Sheet Feeding Tray-A and Inner Finisher-N
Long Sheet Feeding Tray-A, the buffer pass unit, and Staple Finisher-AH, Staple Finisher Lite-B (for the Americas only), or Booklet Finisher-AH
Names of Parts and Their Functions
Specifications

Names of Parts and Their Functions

Long Sheet Feeding Tray-A
Attach to the multi-purpose tray, and load paper. Load one sheet at a time.
Installing and Removing Long Sheet Feeding Tray-A

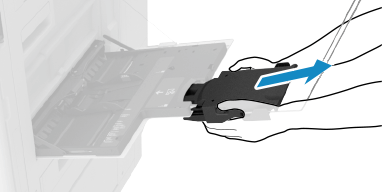

To remove the Long Sheet feeding tray, pull it out while pressing the right and left lock release buttons.

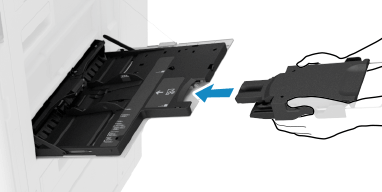

To install the Long Sheet feeding tray, gently insert it onto the multi-purpose tray until you hear a click.

Specifications

Paper Size, Type, and Basis Weight
Same as "Multi-Purpose Tray" of the main unit Usable Paper
Paper Feeding Method and Paper Capacity
Long Sheet paper：1 sheet (with horizontal length of UP to 1,200 mm (47 1/4"))
Other than above: Same as "Multi-Purpose Tray" of the main unit Basic Specifications
Output Capacity
When Inner Finisher-N is installed
Same as "Output Tray Capacity (Tray B)" of Inner Finisher-N Inner Finisher-N and Inner Puncher-D
When Staple Finisher-AH, Staple Finisher Lite-B (for the Americas only), or Booklet Finisher-AH is installed*1
Long Sheet paper: 1 sheet (with horizontal length of up to 1,200 mm (51 1/4"))
Dimensions
(W x D x H)
522 mm x 150 mm x 345 mm (20 5/8 x 5 7/8 x 13 5/8)
Weight
Approx. 0.3 kg (0.7 lb)
*1Long Sheet paper is output to the top of the buffer pass unit and the finisher.
