Orientation for Loading Paper with a Logo

When loading paper with a logo, pay attention to the orientation and which side is face up.
By default, the orientation the paper is to be loaded and the side to print on vary depending on whether you want to print on one or both sides.

Copying/Printing on One Side of Paper with a Logo

Copying/Printing on Both Sides of Paper with a Logo

* When copying to paper with a logo, pay attention to the direction in which the paper is loaded and which side is face up. Orientation of the Original When Copying to Paper with a Logo

NOTE

General Procedure for Loading Paper

See the following:

Loading Paper in the Paper Drawer

Loading Paper in the Multi-purpose Tray

Loading Paper in the High Capacity Cassette Feeding Unit-D (Option)

Ensuring that Paper with a Logo Is Always Loaded Using the Same Method

You can configure the settings so that the orientation the paper is to be loaded and the side to print on do not have to be changed depending on whether you want to print on one or both sides. When this setting is configured, always load the paper using the 2-sided printing method.

When Changing the Paper Feed Method Setting
Change the setting of the paper source for loading paper with a logo, specify that paper source, and print. [Switch Feed Method]

When Changing the Paper Type Setting
Register the type of paper with a logo as template paper, specify that paper type, and print. Registering Frequently Used Paper Types

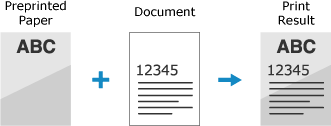

Copying/Printing on One Side of Paper with a Logo

The direction in which the paper is loaded and which side is face up vary depending on the orientation of the paper, the paper source for loading paper, and the paper size.

Paper with logo in portrait orientation

Paper Drawer

Load the paper with the logo side (side to be printed) face up.

A4, B5, A6, or LTR Size Paper (copying)

A4, B5, A6, or LTR Size Paper (printing)

A5 Size Paper (copying) *

A5 Size Paper (printing)

* To copy a portrait orientation original onto logo printed paper by scanning via the feeder, load the paper rotated by 180 degrees.

Multi-purpose Tray

Load the paper with the logo side (side to be printed) face down.

A4, B5, A6, or LTR Size Paper (copying)

A4, B5, A6, or LTR Size Paper (printing)

A5 Size Paper (copying) *

A5 Size Paper (printing)

* To copy a portrait orientation original onto logo printed paper by scanning via the feeder, load the paper rotated by 180 degrees.

Paper with logo in landscape orientation

Paper Drawer

Load the paper with the logo side (side to be printed) face up.

A4, B5, A6, or LTR Size Paper (copying) *

A4, B5, A6, or LTR Size Paper (printing)

* To copy a landscape orientation original onto logo printed paper by scanning via the feeder, load the paper rotated by 180 degrees.

A5 Size Paper (copying)

A5 Size Paper (printing)

* To copy a landscape orientation original onto logo printed paper by scanning via the feeder, load the paper rotated by 180 degrees.

Multi-purpose Tray

Load the paper with the logo side (side to be printed) face down.

A4, B5, A6, or LTR Size Paper (copying) *

A4, B5, A6, or LTR Size Paper (printing)

* To copy a landscape orientation original onto logo printed paper by scanning via the feeder, load the paper rotated by 180 degrees.

A5 Size Paper (copying)

A5 Size Paper (printing)

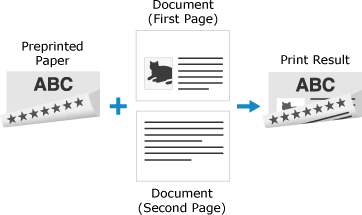

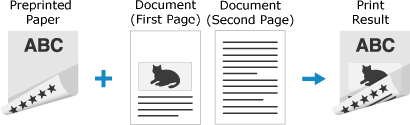

Copying/Printing on Both Sides of Paper with a Logo

The direction in which the paper is loaded and which side is face up vary depending on the orientation of the paper, the paper source for loading paper, and the paper size.
