High Capacity Cassette Feeding Unit-D
You can add a standard-capacity paper drawer and a high-capacity paper drawer. This enables having paper of different sizes loaded in these drawers, reducing the time and labor for paper replacement.

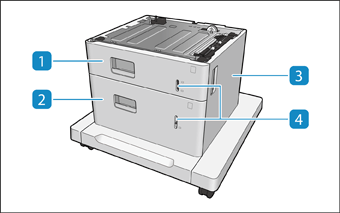

Names of Parts and Their Functions
Paper drawerLoad paper. Loading Paper in the Paper Drawer
High-capacity paper drawer
Right coverOpen this cover when clearing a paper jam inside the machine. Paper Jams in the Paper Source
Paper level indicatorIndicates the remaining amount of paper. The mark moves downward as the remaining amount of paper decreases.
IMPORTANT
The High Capacity Cassette Feeding Unit-D is designed to be installed alone on the machine. It cannot be installed in combination with any other paper source option.
Specifications
Paper Size/Weight/Type | |
Paper Drawers Capacity | The upper paper drawer 550 sheets (80 g/m² (21 lb bond) / 75 g/m² (20 lb bond)) or 60 mm (2 3/8") in height or less x 1 The lower paper drawer 2,000 sheets (80 g/m² (21 lb bond) / 75 g/m² (20 lb bond)) or 212 mm (8 3/8") in height or less x 1 |
Dimensions (W x D x H) | 642 mm x 657 mm x 456 mm (25 1/4" x 25 7/8" x 18") (when attached to the main unit) |
Weight | Approx. 25 kg (55.1 lb) |
