Cassette Feeding Unit-AX
Enables you to add three paper drawers. Loading different sized paper in the optional paper drawers enables reduced work for switching paper.

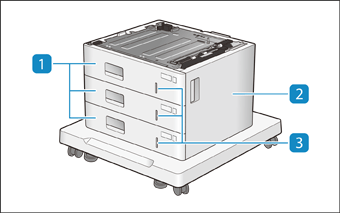

Names of Parts and Their Functions
Paper drawerLoad paper. Loading Paper in the Paper Drawer
Right coverOpen this cover when clearing a paper jam inside the machine. Paper Jams in the Paper Source
Paper level indicatorIndicates the remaining amount of paper. The mark moves downward as the remaining amount of paper decreases.
IMPORTANT
The Cassette Feeding Unit-AX is designed to be installed alone on the machine. It cannot be installed in combination with any other paper source option.
Specifications
Paper Size/Weight/Type | |
Paper Drawers Capacity | 550 sheets (80 g/m² (21 lb bond) / 75 g/m² (20 lb bond)) or 60 mm (2 3/8") in height or less x 3 |
Dimensions (W x D x H) | 642 mm x 657 mm x 456 mm (25 1/4" x 25 7/8" x 18") (when attached to the main unit) |
Weight | Approx. 25 kg (55.1 lb) |
