Problems with Printing Results
The printed image is displaced or skewed.
Are the paper guides misaligned?
Match the paper guides with the paper loaded in the paper source.
Streaks Appear/Printing is Uneven
Are you using appropriate paper?
Check usable paper, and replace with appropriate paper.
Have you cleaned the fixing unit?
Clean the fixing unit.
Have you cleaned the fixing unit?
Clean the fixing unit.
Drum is dirty.
Press
(Settings/Register)
<Adjustment/Maintenance> <Maintenance> <Clean Drum> to clean the drum.
(Settings/Register) <Adjustment/Maintenance> <Maintenance> <Clean Drum> to clean the drum.Is it time to replace the toner cartridge?
Materials inside the toner cartridge may have deteriorated. Replace the toner cartridge.
Black streaks appear.
Is the document feed scanning area dirty?
Clean the document feed scanning area.
Bleedthrough occurs.
Is the density of backgrounds set appropriately?
If bleed-through is observed with the print result, adjusting the density of background can improve the problem, giving a fine print.
Images are not printed on the intended side of the paper.
Is the orientation of the loaded paper correct?
Check the orientation and side of the paper that is facing up. Load the paper again if it is incorrectly orientated.
Images are not printed in the intended size.
Do the original size and size of the paper that is loaded match?
Replace the paper that is loaded with paper of the size you want to print on.

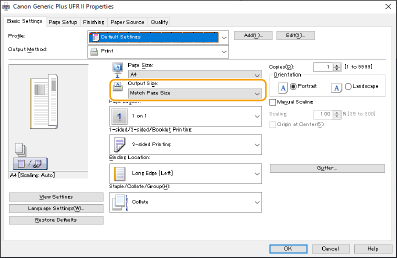

Match [Output Size] in the printer driver with the size of paper to print on.
The orientation does not match on both sides of the paper when using two-sided printing.
Are the settings for two-sided printing correct?
Follow the procedure below to check the print settings.
1 | Select the orientation of the original on the print settings screen of the application. |

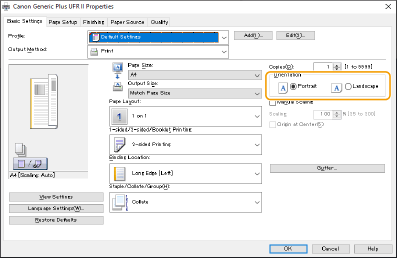

2 | On the [Basic Settings] screen of the driver, set [Orientation] to the same orientation you set in step 1.  |

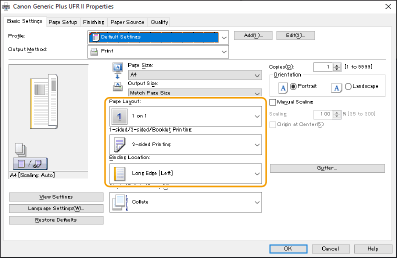

3 | While checking the print preview, set [Page Layout] [Page Order] [1-sided/2-sided/Booklet Printing] [Binding Location]. |
 |
[Page Order] is displayed when [Page Layout] is set to [2 on 1] or higher. |
Smudges Appear on Printouts
Are you using appropriate paper?
Check usable paper, and replace with appropriate paper.
Toner Smudges and Splatters Appear
Are you using appropriate paper?
Check usable paper, and replace with appropriate paper.
Afterimages Appear in Blank Areas
Are you using appropriate paper?
Check usable paper, and replace with appropriate paper.
Is the amount remaining in toner cartridge running low?
Check how much toner is left, and replace the toner cartridge as necessary.
Is it time to replace the toner cartridge?
Materials inside the toner cartridge may have deteriorated. Replace the toner cartridge.
Printouts are faint or streaks appear
Is the amount remaining in toner cartridge running low?
Check how much toner is left, and replace the toner cartridge as necessary.
Is it time to replace the toner cartridge?
Materials inside the toner cartridge may have deteriorated. Replace the toner cartridge.
Are you using appropriate paper?
Check usable paper, and replace with appropriate paper. Also, specify the paper size and type settings properly.
Drum is dirty.
Press (Settings/Register) <Adjustment/Maintenance> <Maintenance> <Clean Drum> to clean the drum.
(Settings/Register) <Adjustment/Maintenance> <Maintenance> <Clean Drum> to clean the drum.White Spots Appear
Are you using paper that has absorbed moisture?
Replace with appropriate paper.
Are you using appropriate paper?
Check usable paper, and replace with appropriate paper.
Is the amount remaining in toner cartridge running low?
Check how much toner is left, and replace the toner cartridge as necessary.
Is it time to replace the toner cartridge?
Materials inside the toner cartridge may have deteriorated. Replace the toner cartridge.
Black Spots Appear
Have you cleaned the fixing unit?
Clean the fixing unit.
Reverse Side of Paper is Smudged
Have you loaded paper that is smaller than the size of the print data?
Check to make sure that the paper size matches the size of the print data.
Have you cleaned the fixing unit?
Clean the fixing unit.
Drum is dirty.
Press (Settings/Register) <Adjustment/Maintenance> <Maintenance> <Clean Drum> to clean the drum.
(Settings/Register) <Adjustment/Maintenance> <Maintenance> <Clean Drum> to clean the drum.The Toner of the Printed Image Peels Off
Are you using appropriate paper?
Check usable paper, and replace with appropriate paper.
Paper Creases
Is paper loaded correctly?
If paper is not loaded below the load limit line or the load limit guide or is loaded obliquely, it may crease.
Are you using paper that has absorbed moisture?
Replace with appropriate paper.
Are you using appropriate paper?
Check usable paper, and replace with appropriate paper.
Paper Curls
Are you using paper that has absorbed moisture?
Replace with appropriate paper.
When the current setting of the paper type is <Plain 1>, change it to <Plain 2>.
Are you using appropriate paper?
Check usable paper, and replace with appropriate paper. Also, specify the paper size and type settings properly.
Turn over the paper (front to back) so that the print side is changed, and then reload the paper.
Rarely, the symptoms may worsen depending on the type of paper you are using. In that case, get the print side back to original.
Paper Is Not Fed/Two or More Sheets Are Fed Together
Is paper loaded correctly?
Fan the paper stack thoroughly so that paper is not stuck together.
Check whether paper is loaded correctly.
Check whether the number of sheets of paper loaded is appropriate and whether the appropriate paper is used.
Check whether mixed sizes and types of paper are loaded together.
