Cassette Feeding Unit-AZ (C3150) / Cassette Feeding Unit-BB (C3135 / C3130 / C3126)
When frequently using paper of varying sizes or types or when loading large quantities of paper at a time, install the optional Cassette Feeding Unit. This option reduces the work of loading paper.

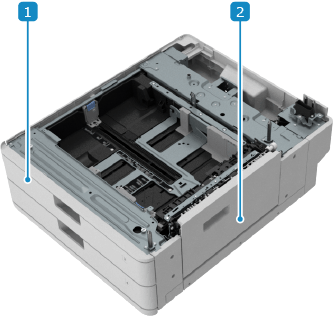

Names of Parts and Their Functions
Paper drawerLoad the paper. Loading Paper in the Paper Drawer
Lower-right cover of the paper drawerOpen this when a paper jam occurs.
Specifications
Paper Size, Type, and Basis Weight | |
Paper Feeding Method and Paper Capacity | Paper Drawer x 2 640 sheets per drawer (64 g/m² (17 lb bond)) 550 sheets per drawer (75 g/m² (20 lb bond), 80 g/m² (21 lb bond)) Transparencies: 100 sheets per drawer |
Dimensions (W x D x H) | 565 mm x 688 mm x 248 mm (22 1/4" x 27 1/8" x 9 3/4") (when attached to the main unit) |
Weight | Cassette Feeding Unit-AZ Approx. 22.7 kg (50.0 lb) Cassette Feeding Unit-BB Approx. 17.9 kg (39.5 lb) |
