Poster Printing
You can enlarge the print data of one page and print it over multiple sheets of paper. When the output sheets are joined together, they form a large print like a poster.
This topic also introduces poster printing setting and output examples.
To Perform Poster Printing
1.
Display the [Basic Settings] sheet.
2.
Select [1-sided Printing] from [1-sided/2-sided/Booklet Printing].
3.
Display the [Basic Settings] or [Page Setup] sheet.
4.
Select [Poster [N x N]] from [Page Layout].
N x N represents the number of sheets of paper over which the print data will be divided and printed.
When printing with border lines, or when setting margins or the range of pages to be printed, perform the following procedure.
5.
Click [Poster Details].
6.
In the [Poster Details] dialog box, set any necessary items → click [OK].
Poster Printing Setting and Output Examples
This shows combinations of setting examples and output results relating to poster printing. The setting examples are shown in combination with the setting state in the [Poster Details] dialog box whenever required.
Setting Example 1.
[Basic Settings] sheet > [Orientation]: [Portrait]
[Basic Settings] or [Page Setup] sheet > [Page Layout]: [Poster [1 x 2]]
Output Result
Setting Example 2.
[Basic Settings] or [Page Setup] sheet > [Page Layout]: [Poster [2 x 2]]

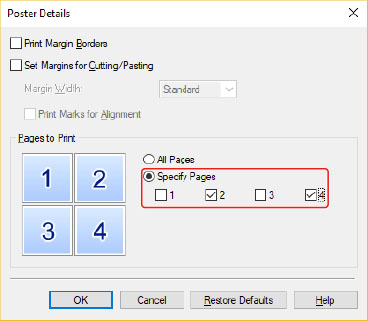

[Poster Details] dialog box > [Pages to Print] > [Specify Pages]: [2] and [4]
Output Result
Setting Example 3.
[Basic Settings] or [Page Setup] sheet > [Page Layout]: [Poster [2 x 2]]

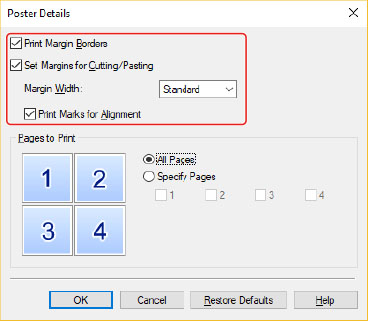

[Poster Details] dialog box: [Print Margin Borders], [Set Margins for Cutting/Pasting], and [Print Marks for Alignment]
Output Result
Legend
Broken line: border
: paste mark
: cut mark
: the margin set for [Margin Width] (10 mm (0.39 inches) when [Standard] is selected.)
