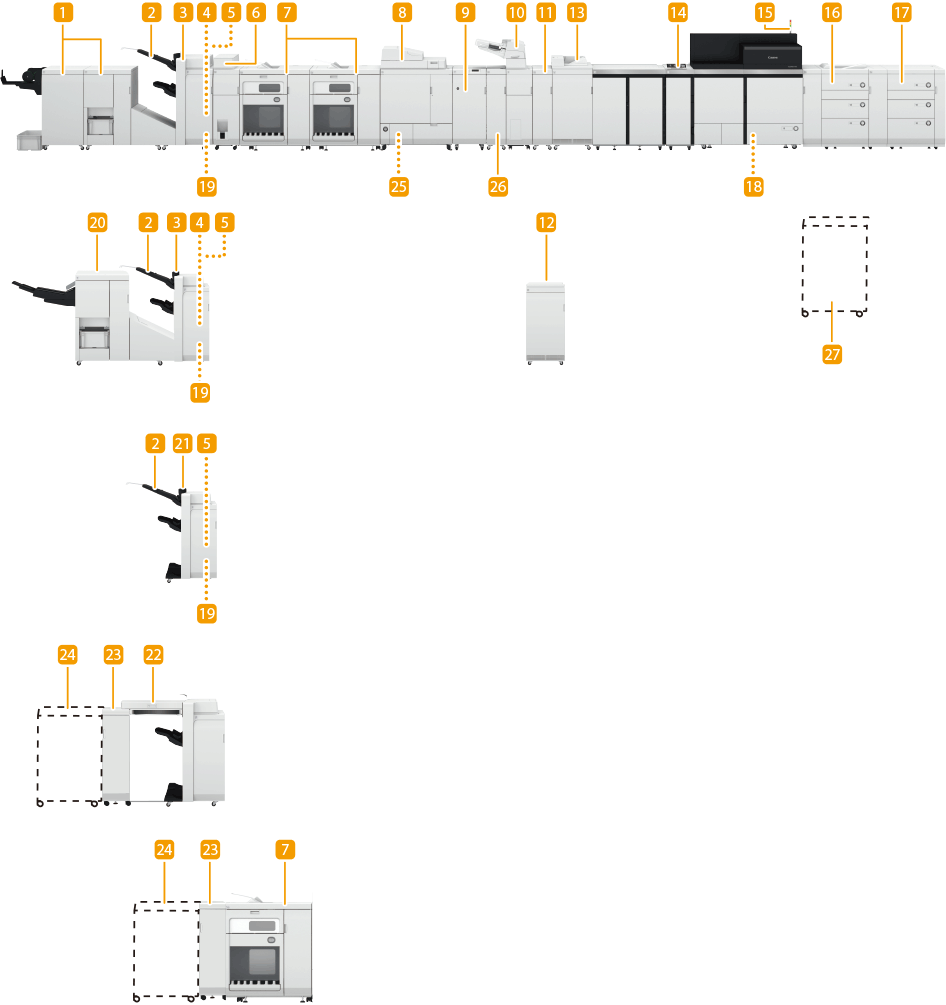

Optional Equipment

By combining options, you can use functions more efficiently.

Booklet Trimmer-G and Two-Knife Booklet Trimmer-B

The "Booklet Trimmer-G" and "Two-Knife Booklet Trimmer-B" trim the fore edge and top/bottom of saddle stitched prints for neat output. For more information, see the manual for the "Booklet Trimmer-G" and "Two-Knife Booklet Trimmer-B."

Finisher Long Sheet Catch Tray-B

You can use this with paper whose length for the feeding direction is up to 30" (762 mm). You can load a paper up to 300 sheets for paper shorter than 30" (762 mm).Finisher Long Sheet Catch Tray-B

Booklet Finisher-AF

You can perform collating, grouping, offsetting, stapling (Corner/Double/Booklet), and saddle folding with this option. Staple Finisher-AF/Booklet Finisher-AF

Staple-P1

The "Staple-P1" can be attached to the "Booklet Finisher-AF" for saddle stitching.

Staple-N1

The "Staple-N1" can be attached to the "Staple Finisher-AF" or "Booklet Finisher-AF" for stapling (Corner and Double).

Paper Folding Unit-K

If the "Paper Folding Unit-K" is attached to the "Staple Finisher-AF" or "Booklet Finisher-AF," the paper can be folded in 5 different ways (Z-Fold, Half Fold, C-Fold, Accordion Z-Fold, and Double Parallel Fold). Paper Folding Unit-K

High Capacity Stacker-J

The "High Capacity Stacker-J" enables you to continuously stack a large amount of paper. Up to two stackers can be attached to the machine. For more information, see the manual for the "High Capacity Stacker-J."

Perfect Binder-F

The "Perfect Binder-F" is equipped with the following features: book binding, gluing, trimming, and stacking. For more information, see the manual for the "Perfect Binder-F."

Multi Function Professional Puncher-C

The "Multi Function Professional Puncher-C" punches several types of hole. For more information on the "Multi Function Professional Puncher-C," see the manual of the "Multi Function Professional Puncher-C."

Document Insertion Unit-R

If the "Document Insertion Unit-R" is attached, a different type of paper from the body of the document can be inserted for a cover or insert. Document Insertion Unit-R

Inspection Unit-B

Installing the "Inspection Unit-B" enables the machine to inspect the quality of printed images based on master images and settings. For more information, see the manual for the "Inspection Unit-B."

Sensing Unit-B

Installing the "Sensing Unit-B" enables the machine to automatically perform adjustment of the image position, color adjustment, and more.
Sensing Unit-B

Flat Control Panel-A

The large size touch panel display enables you to operate the machine efficiently. You can also adjust the angle of the control panel to enable you to see the touch panel display more clearly. Control Panel (Optional)

Operator Attention Light-A

When an error occurs or the remaining amount of consumables is running low, three colored indicators blink so that you can check the status of the machine from a distance. Operator Attention Light-A

POD Deck-E

If the "POD Deck-E" is attached, it can provide three additional paper sources. Up to 1,000 sheets of paper (20 lb bond (80 g/m2)) each can be loaded into the upper and middle decks, and up to 2,000 sheets of paper (20 lb bond (80 g/m2)) can be loaded into the lower deck of the "POD Deck-E." POD Deck-E/Secondary POD Deck-E

Secondary POD Deck-E

If the "Secondary POD Deck-E" is attached to the "POD Deck-E," it can provide three additional paper sources. (A total of six paper sources ) Up to 1,000 sheets of paper (20 lb bond (80 g/m2)) each can be loaded into the upper and middle decks, and up to 2,000 sheets of paper (20 lb bond (80 g/m2)) can be loaded into the lower deck of the "Secondary POD Deck-E." POD Deck-E/Secondary POD Deck-E

Tab Feeding Attachment-E

Attach the "Tab Feeding Attachment-E" to load tab paper into the paper decks of this machine. Loading Tab Paper

Puncher Unit-BS/Puncher Unit-BT

The "Puncher Unit-BS"/"Puncher Unit-BT" is equipped with the Hole Punch mode. The "Puncher Unit-BS"/"Puncher Unit-BT" can be attached only if the "Staple Finisher-AF" or "Booklet Finisher-AF" is attached. Staple Finisher-AF/Booklet Finisher-AF

Booklet Trimmer-G

The "Booklet Trimmer-G" trims the fore edge of saddle stitched prints for neat output. Also, the waste container can be emptied while the machine is in operation. For more information, see the manual for the "Booklet Trimmer-G."

Staple Finisher-AF

You can perform collating, grouping, and stapling (Corner/Double) with this option. Staple Finisher-AF/Booklet Finisher-AF

Finisher Bridge-A

Use the "Finisher Bridge-A" as a bridge to connect the "Staple Finisher-AF"/"Booklet Finisher-AF" to the "DFD Adapter-B."

DFD Adapter-B

Use the "DFD Adapter-B" to connect external finishers.

External Finisher

Various types of external finishers can be attached by connecting to the "DFD Adapter-B."

Perfect Binder Continuous Kit-B

If the "Perfect Binder Continuous Kit-B" is attached to the "Perfect Binder-F," paper output can be performed at any time.

Static Eliminator-A

Installing the "Static Eliminator-A" enables the machine to eliminate the static electricity on the paper and prevent the paper from sticking in the output area and stacking errors. For more information, see the manual for the "Static Eliminator-A."

External Paper Source

The external paper source enables continuous feeding of long sheets.


For information on the combination of options that can be installed on the machine, contact your dealer or service representative. Available optional products may differ depending on your country or region. Some of the settings may not be displayed depending on the configuration of optional equipment installed on the machine.
