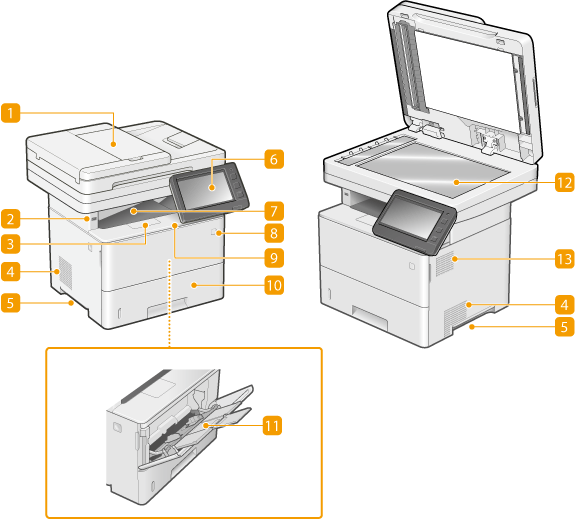

Front Side
Feeder
You can place two or more sheets of originals in the feeder. The placed originals are fed and scanned one by one automatically. 2-Sided Single Pass Feeder
USB memory port
Use this port to connect a third-party USB memory device or USB keyboard. Connecting a USB memory device allows you to print data from the memory device or store scanned originals on the memory device.
The machine can supply a maximum power of 5 V 500 mA. Connecting a device that requires more power may damage the machine.
Some types of memory media may not be able to save data correctly.
The USB port (front-right side of the machine) supports USB 2.0.
Paper stopper
Open the paper stopper when you want to prevent paper from falling out of the output tray.
Ventilation slot
Air from inside the machine is vented out to cool down the inside of the machine. Note that placing objects in front of the ventilation slots prevents ventilation.
Lift handles
Hold the lift handles when carrying the machine.
* When relocating the machine, do not attempt to move it yourself. Instead, contact your local authorized Canon dealer.
Control Panel
The control panel consists of Home key, a display, status indicators, etc. You can perform all the operations and specify settings from the control panel.
Output tray
Printed paper is output to the output tray.
Power switch
Press the power switch when turning ON or OFF the machine.
Front cover
Open the front cover when replacing toner cartridges or removing jammed paper from inside the machine.
Paper drawer
Load the type of paper you frequently use into the paper drawer.
Multi-purpose tray
Load the paper into the multi-purpose tray when you want to temporarily use a type of paper different from that which is loaded in the paper drawer.
Platen glass
When scanning books, originals of heavy or thin paper and other originals that cannot be scanned using the feeder, place them on the platen glass. Placing Originals
Speaker
Emits sounds produced by the machine, such as fax tones and warning tones.
Connecting a USB Memory Device
You can connect a USB memory device to the USB ports located on the front left of the machine, and directly print data from the USB memory device. Originals scanned using the machine can also be saved directly to the USB memory device.
 |
Make sure that the USB memory device is oriented properly when connecting it to the machine. If it is not connected properly, it may cause the USB memory device or machine to malfunction. Make sure to follow the proper procedure when removing the USB memory device. Removing the memory media Failure to do so may cause the USB memory device or machine to malfunction. You can use a USB memory device with a FAT32 (up to 32 GB) or exFAT (up to 2 TB) file system. |
 |
Unsupported devices and usagesMemory media with security functions Memory media that does not meet the USB specification Memory card readers connected via USB Connecting memory media via an extension cable Connecting memory media via a USB hub |
