Specifying Device Information Delivery Settings

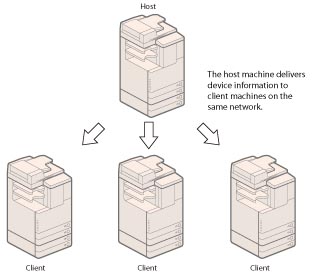

Registering device information in your machine enables you to set the machine to deliver the same device information to other machines that are connected to the same network. The client machine receives and updates the device information. This enables you to easily manage multiple machines at the same time.
Your machine is capable of both sending and receiving device information, which can be delivered manually and automatically.
If you are using an imageRUNNER ADVANCE C2030/C2020 for both the client machine and host machine, you can set SSO-H authentication for the Device Information Delivery Settings mode.
The following device information can be delivered:
|
Delivered Information
|
Contents
|
Notes
|
|
Address Book
|
Address book information stored in [Register Destinations] in [Set Destination].
[Function Settings] → [Receive/Forward] → [Common Settings] → [Forwarding Settings]
[Function Settings] → [Send] → [Common Settings] → [Register Favorite Settings]
[Function Settings] → [Send] → [Common Settings] → [Edit Favorite Settings]
|
All of the currently stored destinations are deleted, and then the destinations that are delivered are registered.
|
|
Department ID
|
[Management Settings] → [User Management] → [System Manager Information Settings]
[Management Settings] → [User Management] → [Department ID Management]
|
Only Department IDs existing in the client machines are deleted.
If an identical Department ID exists in the client machine, its password and set counter limits are overwritten. Counter values, however, are not overwritten.
If a Department ID exists in the host machine, but not in the client machine, the Department ID, password, and set counter limits from the host machine are added to the client machine. Counter values are also added and reset.
If the Card Reader-C1/Copy Card Reader-F1 is attached to the host machine and is not attached to the client machine, or vice versa, only System Manager Settings are delivered.
|
|
Printer Settings
|
[Function Settings] → [Printer] → [Printer Settings]
|
Some Settings/Registration settings are not delivered. For more information, see "Overview of Printer Settings."
|
|
Paper Information
|
[Preferences] → [Paper Settings] → [Paper Type Management Settings]
|
The user-defined paper types that are already stored are delivered. Upon exporting, the user-defined paper information is duplicated and delivered. Upon importing, the user-defined paper types that are already stored are overwritten by the paper information.
|
|
Settings/Registration Value
|
Settings made from the Settings/Registration screen (excluding the above settings)
|
Some Settings/Registration settings are not delivered. For more information, see "Settings/Registration Table."
If you do not deliver [Settings/Registration Value] and [Address Book] at the same time, the settings in [URL Send Settings] in Set Fax/I-Fax Inbox may be erased.
|
|
Web Access Favorites
|
[Web Access Favorites]
|
Can only be delivered if the Web Access function is activated on both the client and host machine.
|
|
Workflow Composer
|
Flows
|
All of the flows currently registered in the client machine are deleted, and then the flows that are delivered are registered.
Delivery and reception is only performed if Workflow Composer is started on both the client and host machine.
For information on Workflow Composer, see the instruction manual that comes with it.
|
|
IMPORTANT
|
|
Preparing for delivery and updating the information after it is received may take several minutes. Do not turn the main power OFF until these operations are complete. Doing so may result in loss of data or damage to the data.
Device information can be shared between machines of the same model (imageRUNNER ADVANCE C2030/C2020), which have the Device Information Delivery Settings mode. However, some information may not be delivered correctly depending on the optional equipment that is attached to the machines.
If [Restrictions for Receiving Device Info.] under <Receiving Settings> is set to 'Off' in [Management Settings] (Settings/Registration), device information can be delivered from different machine models. (See "Setting the Receiving Machine.") However, some information may not be delivered correctly.
Device information cannot be delivered if the System Manager ID and System PIN registered in the client machine differs from the System Manager ID and System PIN registered in the host machine.
|
|
NOTE
|
|
Unique machine information, such as the IP address, is not delivered.
|
|
The machine can deliver device information to devices using IPv4 or devices using IPv6.
|
