Loading Paper in the Paper Drawer
1660-02Y
Load the paper that you usually use in the paper drawer. When you want to print on paper that is not loaded in the paper drawer, load the paper in the multi-purpose tray. Loading Paper in the Multi-Purpose Tray
Paper Orientation
See the table below to load available paper in correct orientation.
Paper | Orientation |
A3, B4, A4 (landscape), B5 (landscape), A5 (landscape), Ledger, Legal, Letter (landscape), Executive (landscape), Foolscap, 8K, 16K (landscape), Indian Legal, Custom (landscape) |  |
A4 (portrait), B5 (portrait), A5 (portrait), Letter (portrait), Executive (portrait), 16K (portrait), Custom (portrait) |  |
 |
Follow the procedure below when loading paper into the optional paper feeder or cassette feeding unit. |
Loading Standard Size Paper
To load paper whose size is found in the paper size markings on the paper drawer, use the following procedure. For paper whose size is not found in the paper size markings, see Loading a Custom Size Paper.
1
Pull out the paper drawer until it stops.
2

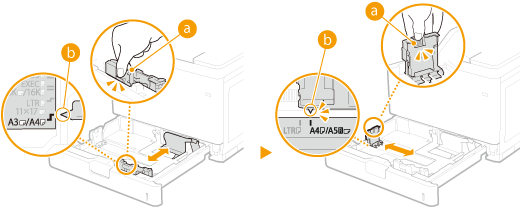

Adjust the positions of the paper guides to the paper size you want to use.
Press the lock release lever (
) to align the projection (
) to the appropriate paper size marking.
) to align the projection () to the appropriate paper size marking.
When loading in the optional paper feeder or cassette feeding unit
When loading A3 or Ledger size paper, set the lever (
) as shown in the illustration.
) as shown in the illustration.
3
Load the paper so that the edge of the paper stack is aligned against the paper guide on the left side of the paper drawer.
Insert the paper with the print side face up.
Fan the paper stack well, and tap it on a flat surface to align the edges.
Do not exceed the load limit line when loading paper
Make sure that the paper stack does not exceed the load limit line (). Loading too much paper can cause paper jams.
). Loading too much paper can cause paper jams.
When loading paper with a logo, see Loading Preprinted Paper.
4
Set the paper drawer.
»
When changing the paper size or type
When you have changed the paper size or paper type, always check the setting. If the loaded paper and the configured paper settings do not match, printing is not performed properly.
Automatic detection of paper type
The machine is provided with a function for automatic paper type detection. If this function is enabled, it is not necessary to change paper type settings when you load plain or heavy paper. Auto Detect Ppr Type
|
To print from an OS not supporting printer drivers or from a mobile device or other device not supporting paper size and type settings, specify <Standard Paper Size> and <Default Paper Type>. Select Feeder Menu |
Printing on the Back Side of Printed Paper (Manual 2-Sided Printing) |
You can print on the back side of printed paper. Flatten any curls on the printed paper and insert it into the multi-purpose tray (Loading Paper in the Multi-Purpose Tray), with the side to print face down (previously printed side face down). When you want to print on the back side of the paper that is already printed, set <Manual 2-Sided (MP)> to <2nd Side> in the setting menu of the operation panel. Manual 2-Sided (MP) Load one sheet of paper each time you print. You can use only the paper printed with this machine. You cannot print on the side that has previously been printed on. |
Loading a Custom Size Paper
To load custom size paper or other paper whose size is not found in the paper size markings on the paper drawer, use the following procedure.
1
Pull out the paper drawer until it stops.
2

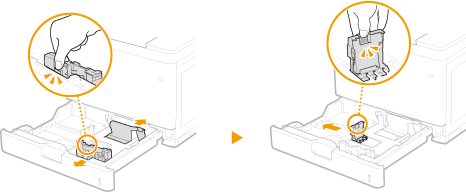

Slide the paper guides apart.
Press the lock release lever to slide the paper guides outward.
3
Load the paper so that the edge of the paper stack is aligned against the right side of the paper drawer.
Place the paper stack with the print side face up.
Fan the paper stack well, and tap it on a flat surface to align the edges.
Do not exceed the load limit line when loading paper
Make sure that the paper stack does not exceed the load limit line (). Loading too much paper can cause paper jams.
). Loading too much paper can cause paper jams.When loading paper with a logo, see Loading Preprinted Paper.
4

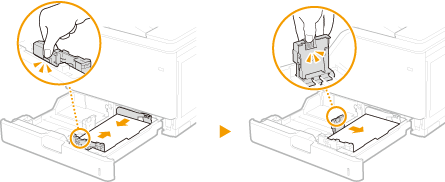

Align the paper guides against the edges of the paper.
Press the lock release lever and slide the paper guides inward until they are aligned securely against the edges of the paper.
Align the paper guides securely against the edges of the paper
Paper guides that are too loose or too tight can cause misfeeds or paper jams.
When loading in the optional paper feeder or cassette feeding unit
If proper loading of paper is obstructed by the lever (), such as if the paper gets elevated or skewed, once remove the paper and adjust the lever position to the paper size. After that, reload the paper and then adjust the position of the paper guides.
), such as if the paper gets elevated or skewed, once remove the paper and adjust the lever position to the paper size. After that, reload the paper and then adjust the position of the paper guides.
5
Set the paper drawer.
»
When changing the paper size or type
If you load a different size or type of paper into the machine, make sure to change the settings. If you do not change the paper size or type setting, the machine cannot print properly.
Automatic detection of paper type
The machine is provided with a function for automatic paper type detection. If this function is enabled, it is not necessary to change paper type settings when you load plain or heavy paper. Auto Detect Ppr Type
|
To print from an OS not supporting printer drivers or from a mobile device or other device not supporting paper size and type settings, specify <Standard Paper Size> and <Default Paper Type>. Select Feeder Menu |
Printing on the Back Side of Printed Paper (Manual 2-Sided Printing) |
You can print on the back side of printed paper. Flatten any curls on the printed paper and insert it into the multi-purpose tray (Loading Paper in the Multi-Purpose Tray), with the side to print face down (previously printed side face down). When you want to print on the back side of the paper that is already printed, set <Manual 2-Sided (MP)> to <2nd Side> in the setting menu of the operation panel. Manual 2-Sided (MP) Load one sheet of paper each time you print. You can use only the paper printed with this machine. You cannot print on the side that has previously been printed on. |
