Select Feeder Menu

The settings about the paper source and the size of paper loaded in the machine are listed with short descriptions. When you press

(

) on the operation panel, the Select Feeder menu is displayed. Default settings are marked with a dagger (


Common settings The settings are the same as those for <Paper Source> in the Setup Menu. The settings specified here are also applied to the <Paper Source> settings. Asterisks () Settings marked with an asterisk () may not be displayed depending on the options you are using, or other setting items.

Common settings

The settings are the same as those for <Paper Source> in the Setup Menu. The settings specified here are also applied to the <Paper Source> settings.

Asterisks (*)

Settings marked with an asterisk (*) may not be displayed depending on the options you are using, or other setting items.

Paper Source

MP Tray Paper Size

Drawer N Paper Size (N=1, 2, 3, 4, 5)

Drawer N Paper Type (N=1, 2, 3, 4, 5)

Manual 2-Sided (MP)

2-Sided Printing

Paper Source

Select the paper source from which paper is fed. When you want to automatically change the paper source based on the paper size and paper type, select <Auto>.

Auto

Multi-Purpose Tray

Drawer 1

Drawer 2 *

Drawer 3 *

Drawer 4 *

Drawer 5 *

(

)

Select the paper source

MP Tray Paper Size

Specify the size of the paper that is loaded in the multi-purpose tray. Specifying Paper Size and Type in the Multi-Purpose Tray

A5R

B5R

A4R

LTR

LTRR

LGL

11x17

EXEC

EXECR

305x457 mm

Free Size

Custom Size

Custom Size R

Postcard

Reply Postcard

4on1 Postcard

Env. Kakugata2

Env. Nagagata3

Env. Younaga 3

Env. ISO-C5

Env. Monarch

Env. No.10

Env. DL

India-LGL

Index Card

STMT

STMTR

FLSC

16K

16KR

Drawer N Paper Size (N=1, 2, 3, 4, 5) *

Set the size of paper loaded in the machine's paper drawer or optional paper feeder or cassette feeding unit (Specifying Paper Size and Type in the Paper Drawer).

Machine's Paper Drawer

A5R

B5R

EXECR

Free Size

Auto

Custom Size

Custom Size R

India-LGL

FLSC

16K

16KR

Paper Feeder's or Cassette Feeding Unit's Paper Drawer

A5R

B5R

EXECR

Free Size

Auto

Custom Size

Custom Size R
India-LGL
FLSC

16K

16KR

Standard Paper Size

Set the default paper size. Printing will be performed with the paper size set here when you want to print from an OS not supporting printer drivers or a mobile device or other device not supporting paper size settings.

LTR

LGL

11x17

EXEC

305x457 mm

Postcard

Reply Postcard

4on1 Postcard

Env. Kakugata2

Env. Nagagata3

Env. Younaga 3

Env. ISO-C5

Env. Monarch

Env. No.10

Env. DL

India-LGL

Index Card

STMT

FLSC

16K

(

)

Select the paper size

Selecting the paper size

Specify the setting according to the size of the paper to print on.

MP Tray Priority

Select whether to prioritize paper feeding from the multi-purpose tray when <Paper Source> is set to <Auto>. If you select <On>, paper is fed from the multi-purpose tray when the same size paper is loaded in both the multi-purpose tray and the paper drawer.

Off

(

)


When <MP Tray for Mix Ppr.> is set to <On>, paper is preferentially fed from the paper drawer even if <MP Tray Priority> is set to <On>.

MP Tray for Mix Ppr.

If you select <On> with <Paper Source> set to <Auto>, the multi-purpose tray is automatically selected when appropriate size paper is not loaded in any paper drawer.

Off

(

)

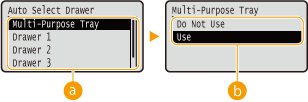

Auto Select Drawer

If you select <Use> with <Paper Source> set to <Auto>, the machine automatically selects the paper source with appropriate size paper loaded. Also, when the paper runs out, this setting enables continuous printing by switching from one paper source to another that is loaded with the same paper size.

Do Not Use

Use

(

)

Select the paper source

Paper source selection

Select the paper source to which you want to apply the Auto Select Drawer function.

Switching of the settings

Select <On> to enable automatic drawer selection for the paper source you selected on the previous screen (

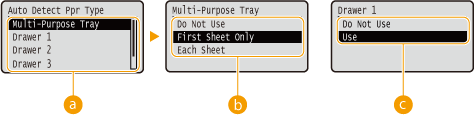

Auto Detect Ppr Type

Specify whether to automatically detect the paper type when plain paper or heavy paper is loaded. To use this function, set the paper type for the paper source to <Mixed Types>. Also, set [Paper Type] in the printer driver to [Printer Default].
Available Paper
MP Tray Paper Type
Drawer N Paper Type (N=1, 2, 3, 4, 5)
Basic Printing Operations

Multi-Purpose Tray

Do Not Use

First Sheet Only

Each Sheet

Drawer 1

Do Not Use

Use

Drawer 2 *

Do Not Use

Use

Drawer 3 *

Do Not Use

Use

Drawer 4 *

Do Not Use

Use

Drawer 5 *

Do Not Use

Use

(

)

Check the message

Select the paper source

Select the setting value

Paper source selection

Select the paper source for which you want to make a setting concerning automatic paper type detection.

Switching of the settings (Multi-Purpose Tray)

When <First Sheet Only> is specified, paper type detection is performed for the first sheet only. When <Each Sheet> is specified, paper type detection is performed for each sheet as it is fed.

Switching of the settings (Drawer 1 to 5*)

When <Use> is specified, paper type detection is performed for the first sheet only.


When this function is enabled, the printing speed may be slower. When <Each Sheet> is specified, the printing speed will be slower. When this function is enabled, the machine may not be able to print properly. If the machine cannot print properly, set this function to <Do Not Use> and specify the paper type from the printer driver before trying printing again.

Default Paper Type

Set the default paper type. Printing will be performed with the paper type set here when you want to print from an OS not supporting printer drivers or a mobile device or other device not supporting paper type settings.

Plain

Plain L
Plain L2

Heavy 1

Heavy 2

Heavy 3

Heavy 4

Heavy 5

Postcard

Envelope

Coated 1

Coated 2

Coated 3

Labels

Rough 1

Rough 2

(

)

Select the paper type

Paper type selection

Specify the settings in the same way as the paper settings in the printer driver according to the paper type for printing. Loading Paper


Printing will be performed with the paper type set here if [Paper Type] is set to [Printer Default] on the printer driver side and the type of the paper loaded in the paper source is set to <Mixed Types> on the machine side.

MP Tray Paper Type

Set the type of paper loaded in the multi-purpose tray. Specifying Paper Size and Type in the Multi-Purpose Tray

Plain

Plain L

Plain L2

Heavy 1

Heavy 2

Heavy 3

Heavy 4

Heavy 5

Postcard

Envelope

Coated 1

Coated 2

Coated 3

Labels

Rough 1

Rough 2

Mixed Types

Drawer N Paper Type (N=1, 2, 3, 4, 5) *

Set the type of paper loaded in the paper drawer. Specifying Paper Size and Type in the Paper Drawer

Plain

Plain L

Plain L2

Heavy 1

Heavy 2

Heavy 3

Heavy 4

Labels

Rough 1

Rough 2

Mixed Types

Manual 2-Sided (MP)

Select the side of paper to print on when you want to perform 2-sided printing manually from the multi-purpose tray.

1st Side

2nd Side

(

)

<1st Side> or <2nd Side>

<1st Side>

Select to print on the back side (the side to print first).

<2nd Side>

Select to print on the front side (the opposite of the side that is already printed).

2-Sided Printing

Select whether to print on both sides of paper.

Off

(

)

<2-Sided Printing>
