Document Insertion Unit-R
To feed a different type of paper than that of the main document for use as a cover or an inserted sheet, attach Document Insertion Unit-R to the optional Staple Finisher-AG and Booklet Finisher-AG.

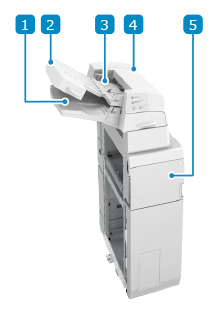

Names of Parts and Their Functions
Lower trayYou can load paper you want to use as a cover, sheet insertion, or job separator. Loading Paper in Document Insertion Unit-R (Option)
Tray coverLift to load paper in the lower tray. Loading Paper in Document Insertion Unit-R (Option)
Upper trayYou can load paper you want to use as a cover, sheet insertion, or job separator. Loading Paper in Document Insertion Unit-R (Option)
Upper coverOpen this when a paper jam occurs. Paper Jams in Document Insertion Unit-R (Option)
Front coverOpen this when a paper jam occurs. Paper Jams in Document Insertion Unit-R (Option)
Specifications
Paper Size, Type, and Basis Weight | |
Paper Feeding Method and Paper Capacity | Upper/Lower Tray 24 mm (1") or less in height (equivalent to 200 sheets) (64 g/m² (17 lb bond), 75 g/m² (20 lb bond), 80 g/m² (21 lb bond)) |
Power Supply | 100 V - 240 V AC, 50/60 Hz, 1.0 A |
Maximum Power Consumption | 120 W or less |
Dimensions (W x D x H) | 746 mm x 793 mm x 1,407 mm (29 3/8" x 31 1/4" x 55 3/8")*1 |
Weight | Approx. 61 kg (134.5 lb) |
*1When this optional equipment is attached to the main unit or another optional equipment, there will be a gap of +5 mm (1/4") in the horizontal direction.
