Staple Finisher-AG, Booklet Finisher-AG, Puncher Unit, and Booklet Trimmer-G
To staple paper, fold paper, and use other finishing functions, install the optional Staple Finisher-AG or Booklet Finisher-AG.
* Depending on the country or region, Staple Finisher-AG may not be available.
By installing the following puncher unit to the finisher, you can also use the punch function.
Puncher Unit-BT
Puncher Unit-BU
Puncher Unit-BS
By attaching Booklet Trimmer-G to Booklet Finisher-AG, you can trim and neatly align the edges of saddle stitched booklet paper. For more information on Booklet Trimmer-G, see the manual of Booklet Trimmer-G.
If you install Multi Function Professional Puncher-C, you can punch several types of holes. For more information on Multi Function Professional Puncher-C, see the manual of Multi Function Professional Puncher-C.
Available Finishing Functions
The finishing functions that are available when Staple Finisher-AG or Booklet Finisher-AG is installed are shown below.
Sorting Functions
Collate
Group
Offset
Stapling Functions
Corner
Double
Saddle Stitch*1
Trim*2
Folding Functions
Saddle Fold
Punch Functions
Hole Punch*3
*1Available only when Booklet Finisher-AG is installed.
*2Available only when Booklet Trimmer-G is installed.
*3Available only when Puncher Unit is installed.
Precautions When Using Finishing Functions
Precautions When Using Collate and Group
If the load limit is reached during tray lowering, paper is ejected automatically to an available tray. If all available trays have reached their load limit, printing is paused. When the ejected paper is removed from the tray, printing resumes.
Precautions When Using Staple
The number of sheets that can be stapled varies depending on the paper type and thickness. Specifications
If the machine cannot staple the paper, change the paper or reduce the number of sheets to be stapled.
If the machine cannot staple the paper, change the paper or reduce the number of sheets to be stapled.
Remove stapled paper after it has been completely output to the tray and do not remove it while it is being stapled.
When [Load staples into the stapler unit.] appears, replace the staple case and add more staples. Adding Staples (Option)
If the tray reaches its lower limit position, printing is paused. When the ejected paper is removed from the tray, printing resumes.
Precautions When Using Saddle Stitch
The folding condition varies depending on the paper type and number of sheets.
Names of Parts and Their Functions
Exterior View

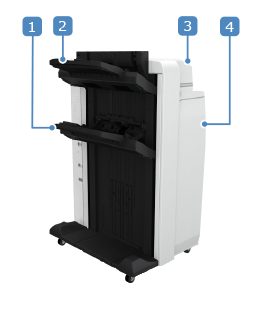

Staple Finisher-AG

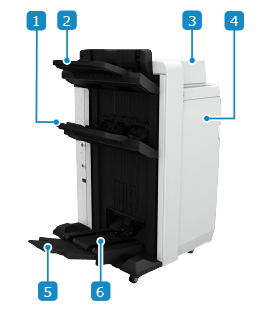

Booklet Finisher-AG
Output tray (Tray B)Outputs printed and copied paper. You can set which function to use the tray as the output destination. Output Destination Settings
* If [High Volume Stack Mode] is set to [On], the prints are preferentially output to the tray B regardless of the settings of [Output Tray Settings]. [High Volume Stack Mode] (For 8100 Series Only)
* If [High Volume Stack Mode] is set to [On], the prints are preferentially output to the tray B regardless of the settings of [Output Tray Settings]. [High Volume Stack Mode] (For 8100 Series Only)
Output tray (Tray A)Outputs printed and copied paper. You can set which function to use the tray as the output destination. Output Destination Settings
* If [High Volume Stack Mode] is set to [On],the prints are preferentially output to the tray B regardless of the settings of [Output Tray Settings]. [High Volume Stack Mode] (For 8100 Series Only)
* If [High Volume Stack Mode] is set to [On],the prints are preferentially output to the tray B regardless of the settings of [Output Tray Settings]. [High Volume Stack Mode] (For 8100 Series Only)
Top coverOpen this when a paper jam occurs.
Front coverOpen this when a paper or staple jam occurs and when adding staples.
When Puncher Unit is installed, open this to dispose of punch waste.
When Puncher Unit is installed, open this to dispose of punch waste.
Auxiliary booklet trayThe number of copies that can be loaded in the booklet tray is limited.
Booklet trayOutputs saddle stitch booklet paper.
NOTE
Output Tray A and B align output paper with their two alignment guides. You can adjust the position of these guides.
Interior

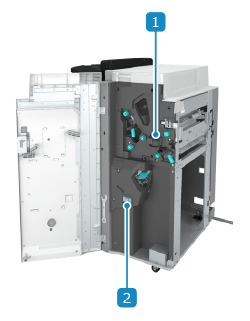

Staple Finisher-AG

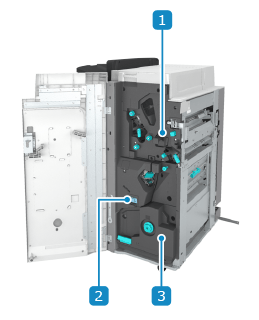

Booklet Finisher-AG
Punch waste tray (when Puncher Unit is installed)Pull out to dispose of punch waste.
Staple waste trayPull out to dispose of staple waste. Disposing of Staple Waste (Option)
Saddle stitch unitPull this out when a paper or staple jam occurs and when adding staples.
Specifications
Paper Size, Type, and Basis Weight | All paper that can pass through the machine*1 Usable Paper |
Output Tray Capacity (Tray A)*2 | No Finishing Settings, Collate, Group 147.0 mm (5 3/4") in height (equivalent to 1,000 sheets) Envelopes Kakugata 2: 130 mm (5 1/8") in height or 300 sheets Other than Kakugata 2: 130 mm (5 1/8") in height or 150 sheets Z-fold (When Paper Folding Unit-K is attached) A3, B4, 11" x 17": 30 sheets Half fold (When Paper Folding Unit-K is attached) A4R, LTRR: 50 sheets Long Sheet paper (210.0 mm x 487.8 mm to 330.2 mm x 1,300 mm (8 1/4" x 19 1/4" to 13" x 51 1/4")) When none of Long Sheet Tray-B, Long Sheet Tray-C, or Finisher Long Sheet Catch Tray-B is attached Supporting by hand When Long Sheet Tray-B or Long Sheet Tray-C is attached (487.8 mm to 762.0 mm (19 1/4" to 30")) 64 g/m² to 79 g/m² (17 lb bond to 21 lb bond): 100 sheets 80 g/m² to 150 g/m² (21.3 lb bond to 39.9 lb bond): 50 sheets 151 g/m² to 300 g/m² (55.8 lb cover to 110.9 lb cover): 25 sheets When Finisher Long Sheet Catch Tray-B is attached (487.8 mm to 762.0 mm (19 1/4" to 30")) 64 g/m² to 150 g/m² (17 lb bond to 39.9 lb bond): 300 sheets 151 g/m² to 300 g/m² (55.8 lb cover to 110.9 lb cover): 150 sheets When Finisher Long Sheet Catch Tray-B is attached (762.1 mm to 1,300 mm (30 1/8" to 51 1/4")) 10 sheets Offset 147.0 mm (5 3/4") (equivalent to 1,000 Sheets) Z-fold (When Paper Folding Unit-K is attached) A3, B4, 11" x 17": 30 sheets Half fold (When Paper Folding Unit-K is attached) A4R, LTRR: 50 sheets |
Output Tray Capacity (Tray B)*2 | No Finishing Settings, Collate, Group A4, B5, LTR, EXEC: 285 mm (11 1/4") in height (equivalent to 2,000 sheets)*3 Other than above: 147.0 mm (5 3/4") in height (equivalent to 1,000 sheets)*4 Z-fold (When Paper Folding Unit-K is attached) A3, B4, 11" x 17": 30 sheets When [High Volume Stack Mode] Is Set to [On] A4, B5, LTR, EXEC: 490 mm (19 1/4") in height (equivalent to 4,000 sheets)*3*5 A4R, B5R, LTRR: 285 mm (11 1/4") in height (equivalent to 2,000 sheets)*3*5 A3, B4, 11" x 17", LGL: 216 mm (8 1/2") in height (equivalent to 1,500 sheets)*3*5*6 330 mm x 483 mm (13" x 19"), 320 mm x 450 mm (SRA3) (12 5/8" x 17 11/16"), 305 mm x 457 mm (12" x 18"): 147 mm (5 3/4") in height (equivalent to 1,000 sheets)*3*6 Offset Same as "No Finishing Settings, Collate, Group" Staple (Corner, Double) A4, B5, LTR, EXEC, 16K: 200 copies, total of 3,000 sheets, or 490 mm (19 1/4") in height A4R, B5R, LTRR, 16KR: 200 copies, total of 2,000 sheets, or 285 mm (11 1/4") in height A3, B4, 11" x 17", LGL, 8K: 200 copies, total of 1,500 sheets, or 216 mm (8 1/2") in height*6 Z-fold (When Paper Folding Unit-K is attached): 30 sheets |
Booklet Tray Capacity (Booklet Finisher-AG Only) | Continuous by the belt conveyor |
Number of Sheets That Can Be Stapled*7 | Corner and Double (Uncoated Paper) A4, B5, LTR, EXEC, 16K 52 g/m² to 80 g/m² (14 lb bond to 21 lb bond): 100 sheets 80.1 g/m² to 81.4 g/m² (21.3 lb bond to 21.7 lb Bond): 80 sheets 81.5 g/m² to 105 g/m² (21.7 lb bond to 27.9 lb bond): 60 sheets 105.1 g/m² to 200 g/m² (28 lb bond to 74 lb cover): 20 sheets More than 200 g/m² (74 lb cover): Only for front and back covers A3, B4, A4R, B5R, LTRR, LGL, 11" x 17", 8K, 16KR 52 g/m² to 81.4 g/m² (13.8 lb bond to 21.7 lb bond): 50 sheets 81.5 g/m² to 105 g/m² (21.7 lb bond to 27.9 lb bond): 30 sheets 105.1 g/m² to 200 g/m² (28 lb bond to 74 lb cover): 10 sheets More than 200 g/m² (74 lb cover): Only for front and back covers Corner and Double (Coated Paper) A4, B5, LTR, EXEC, 16K 91 g/m² to 105.9 g/m² (24.2 lb bond to 27.9 lb bond ): 40 sheets 106.0 g/m² to 150 g/m² (28.2 lb bond to 39.9 lb bond): 15 sheets A3, B4, A4R, B5R, LTRR, LGL, 11" x 17", 8K, 16KR 91 g/m² to 105.9 g/m² (24.2 lb bond to 27.9 lb bond ): 30 sheets 106.0 g/m² to 150 g/m² (28.2 lb bond to 39.9 lb bond): 10 sheets |
Punch (when Puncher Unit is installed) | Number of Holes Punched and Paper Size When Puncher Unit-BT is installed: Two holes: A3, B4, A4, A4R, B5, B5R, A5, LTR, LTRR, LGL, 11" x 17", EXEC, Custom Size (182.0 mm x 182.0mm to 297.0 mm x 432.0 mm (7 1/8" x 7 1/8" to 11 3/4" x 17"))*8 Four holes: A3, B4, A4, A4R, B5, B5R, A5, Custom Size (182.0 mm x 182.0mm to 297.0 mm x 432.0 mm (7 1/8" x 7 1/8" to 11 3/4" x 17")) When Puncher Unit-BS is installed: Two holes: A3, B4, A4, A4R, B5, B5R, A5, LTR, LTRR, LGL, 11" x 17", EXEC, Custom Size (182.0 mm x 182.0mm to 297.0 mm x 432.0 mm (7 1/8" x 7 1/8" to 11 3/4" x 17"))*8 Three holes: LTR, 11" x 17", EXEC, Custom Size (240.0 mm x 182.0mm to 297.0 mm x 432.0 mm (9 1/2" x 7 1/8" to 11 3/4" x 17")) When Puncher Unit-BU is installed: Four holes: A3, B4, A4, B5, LTRR, 11" x 17", EXEC, 8K, 16K, Custom Size (257.0 mm x 182.0 mm to 297 mm x 432.0 mm (10 1/8" x 7 1/8" to 11 3/4" x 17")) Paper Basis Weight 52 g/m² to 300 g/m² (14 lb bond to 110 lb cover) |
Saddle Stitch and Fold (Booklet Finisher-AG only) | Paper Size A3, B4, A4R, 330 mm × 483mm (13" x 19"), 320 x 450 mm (12 5/8" x 17 11/16") (SRA3), 305 x 457 mm (12" x 18"), LTRR, LGL, 11" x 17", Custom Size (210 mm x 279.4 mm to 330.2 mm x 487.7 mm (8 1/4" x 11" to 13" x 19 1/4")) Paper Basis Weight Content pages basis weight: 52 g/m² to 220 g/m² (14 lb bond to 80 lb cover) Cover basis weight: 64 g/m² to 300 g/m² (17 lb bond to 110.9 lb cover)*9 Number of Sheets That Can Be Saddle Stitched (Uncoated Paper and Including Covers)*9 52 g/m² to 80.0 g/m² (14 lb bond to 21.3 lb bond): 2 sheets to 25 sheets 81 g/m² to 105 g/m² (21.5 lb bond to 27.9 lb bond): 2 sheets to 15 sheets 106 g/m² to 209 g/m² (28.2 lb bond to 77.3 lb cover): 2 sheets to 5 sheets 210 g/m² to 220 g/m² (77.7 lb cover to 81.4 lb cover): 2 sheets to 4 sheets Number of Sheets That Can Be Saddle Stitched (Coated Paper and Including Covers)*9 91 g/m² to 128 g/m² (24.2 lb bond to 34 lb bond): 2 sheets to 10 sheets 129 g/m² to 150 g/m² (34.3 lb bond to 39.9 lb bond): 2 sheets to 4 sheets Number of Sheets That Can Be Saddle Folded 52 g/m² to 209 g/m² (13.8 lb bond to 77.3 lb cover): 5 sheets 52 g/m² to 300 g/m² (13.8 lb bond to 110.9 lb cover): 1 sheet |
Power Supply | 220 V - 240 V AC, 50/60 Hz, 8 A |
Maximum Power Consumption | 500 W or less |
Dimensions (W x D x H) | Staple Finisher-AG 800 mm x 792 mm x 1,239 mm (31 1/2" x 31 1/4" x 48 3/4")*10 When the extension tray is extended: 890 mm x 792 mm x 1,239 mm (35" x 31 1/4" x 48 3/4")*10 Booklet Finisher-AG 800 mm x 792 mm x 1,239 mm (31 1/2" x 31 1/4" x 48 3/4")*10 When the extension tray is extended: 1,060 mm x 792 mm x 1,239 mm (41 3/4" x 31 1/2" x 42 1/2")*10 |
Weight | Staple Finisher-AG Approx. 130 kg (286.6 lb) Booklet Finisher-AG Approx. 180 kg (396.8 lb) |
*1The paper whose width is less than 182.0 mm (7 1/8") cannot be output from the Tray B.
*2When using 64 g/m² (17 lb bond), 75 g/m² (20 lb bond), or 80 g/m² (21 lb bond) paper. Capacity varies in all other cases.
*3Up to 1,000 sheets for paper under 64 g/m² (17 lb bond)
*4Up to 1,000 sheets for paper under 64 g/m² (17 lb bond) or paper with a length of 420.1 mm (16 1/2") or longe
*5Except when sheets are stacked in the booklet tray or when Booklet Trimmer-G is attached
*6Coated paper: 147 mm (5 3/4") (equivalent to 1,000 sheets)
*7When a standard staple cartridge is installed. Depending on the type and thickness of paper, the number of sheets that can be stapled may decrease.
*8182.0 mm to 203.0 mm (7 1/8" to 8") in width is only available for 257.0 mm x 270.0 mm (10 1/8" x 10 5/8") in length.
*9The paper used for covers should be the same as or heavier than the paper for the body.
*10When this optional equipment is attached to the main unit or another optional equipment, there will be a gap of +5 mm (1/4") in the horizontal direction.
