Printing Cannot Be Performed (USB Connection)

113H-0JF
If you cannot print when the printer is connected to the computer by a USB cable, check the problem following the questions below.
NOTE
For Macintosh users
This section describes the procedure for Windows as an example.
For details on the procedure for Macintosh, see "Driver Guide."
For details on the procedure for displaying "Driver Guide", see "Viewing the Driver Guide."

<Question 1> Is the printer turned ON?

Check if the Main Power indicator on the control panel is turned on.
ON
To <Question 2>
OFF
Turn the printer ON.
Cannot be turned ON
"You Cannot Turn the Printer ON"

<Question 2> Check the indicators on the printer unit.

The Ready indicator is on.
To <Question 3>
The Ready indicator is blinking.
The printer is warming up. Please wait a moment.
The Message indicator is on.
"The Message Indicator Is On"
The Job indicator is on.
The printer is operating. Please wait a moment.
If the printer does not perform printing for a while, perform the print data output or soft reset.
"Canceling a Job"
The Job indicator is blinking.
The Paper Source indicator is blinking.
It is out of paper. Load paper.
"Paper Loading and Output"

<Question 3> Check the Online indicator.

The Online indicator is on.
To <Question 4>
The Online indicator is off.
The printer is offline.
Place it online.
"Online and Offline"

<Question 4> Can you print Configuration Page?

 "Checking the Printer Settings and Consumables"
Printable
To <Question 5>
Not printable
If an error message is displayed, solve the problem following the message.
"A Message Appears in the Control Panel"

<Question 5> Is the USB cable connected properly?

Connected
Try the following points.
If you are using a hub, connect the printer to the computer directly.
If you are using a long USB cable, replace it with the short one.
If you have another USB cable, use it.

If printing does not work, proceed to <Question 6>.
Unconnected
Connect the cable properly.
"Connecting to a Computer"

<Question 6> Check the settings for [Interface Selection].

 "[Setup] Menu ([Interface] Options)"
[USB] is set to [On].
To <Question 7>
[USB] is set to [Off].
Set it to [On].

<Question 7> Can you print a test page in Windows?

 "Basic Operations/Various Information for Windows"
Printable
There is no problem with the printer and driver.
Check the printing preferences in the application.
Not printable
To <Question 8>

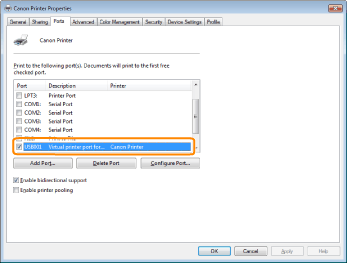

<Question 8> Is the port to be used selected correctly?

 "Basic Operations/Various Information for Windows"
Selected
To <Question 9>
Not selected
Select the correct port.
The port to be used cannot be found.
Install the printer driver again.
For details on the procedure for installing and uninstalling the printer driver, see "Printer Driver Installation Guide."
For details on the procedure for viewing "Printer Driver Installation Guide", see "Installation."

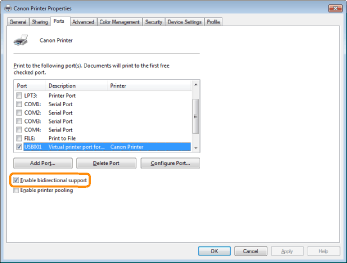

<Question 9> Is bi-directional communication enabled?

 "Basic Operations/Various Information for Windows"
Enabled
To <Question 10>
Not enabled
Enable bi-directional communication and restart the computer and printer.

<Question 10> Try the following points.

Make resident software invalid including security software.
If any other devices are connected to your computer by USB connection, disconnect those unneeded.
If drivers or software of any other devices (USB connection) is installed on your computer, uninstall those unneeded.
Connect the USB cable to another USB port on your computer.
Connect the printer to another computer with a USB cable.

If printing does not work, proceed to <Question 11>.

<Question 11> Install the printer driver again.

For details on the procedure for installing the printer driver, see "Printer Driver Installation Guide."
For details on the procedure for viewing "Printer Driver Installation Guide", see "Installation."

If printing does not work, proceed to <Question 12>.

<Question 12> Uninstall the USB class driver, and then install the printer driver again.

For details on the procedure for uninstalling the USB class driver and installing the printer driver, see "Printer Driver Installation Guide" on the User Software CD-ROM.
For details on the procedure for viewing "Printer Driver Installation Guide", see "Installation."

If printing does not work, contact your local authorized Canon dealer.
