Orientation for Loading Paper with a Logo
When loading paper with a logo, pay attention to the orientation and which side is face up.
By default, the orientation the paper is to be loaded and the side to print on vary depending on whether you want to print on one or both sides.
By default, the orientation the paper is to be loaded and the side to print on vary depending on whether you want to print on one or both sides.
* When copying to paper with a logo, pay attention to the direction in which the paper is loaded and which side is face up. Orientation of the Original When Copying to Paper with a Logo
* Set [Image Orientation Priority] and [Speed Priority for Copying from Feeder] to [Off] in advance.
NOTE
General Procedure for Loading Paper
See the following:
Ensuring that Paper with a Logo Is Always Loaded Using the Same Method
You can configure the settings so that the orientation the paper is to be loaded and the side to print on do not have to be changed depending on whether you want to print on one or both sides. When this setting is configured, always load the paper using the 2-sided printing method.
When Changing the Paper Type Setting
Register the type of paper with a logo as template paper, specify that paper type, and print. Registering Frequently Used Paper Types
Register the type of paper with a logo as template paper, specify that paper type, and print. Registering Frequently Used Paper Types

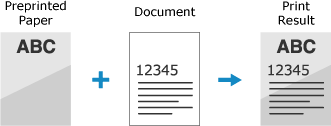

Printing on One Side of Paper with a Logo
The direction in which the paper is loaded and which side is face up vary depending on the orientation of the paper, the paper source for loading paper, and the paper size.
Paper with logo in portrait orientation
Paper Deck and Paper Drawer
Load the paper with the logo side (side to be printed) face down.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper (For the Paper Drawer Only)
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
Multi-purpose Tray
Load the paper with the logo side (side to be printed) face up.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
POD Deck Lite-C
Load the paper with the logo side (side to be printed) face up.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
Multi-drawer Paper Deck-E
Load the paper with the logo side (side to be printed) face up.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
Paper Deck Unit-E
Load the paper with the logo side (side to be printed) face up.
Document Insertion Unit-R
Load the paper with the logo side (side to be printed) face up.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
Paper with logo in landscape orientation
Paper Deck and Paper Drawer
Load the paper with the logo side (side to be printed) face down.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper (For the Paper Drawer Only)
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
Multi-purpose Tray
Load the paper with the logo side (side to be printed) face up.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
POD Deck Lite-C
Load the paper with the logo side (side to be printed) face up.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
Multi-drawer Paper Deck-E
Load the paper with the logo side (side to be printed) face up.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
Paper Deck Unit-E
Load the paper with the logo side (side to be printed) face up.
Document Insertion Unit-R
Load the paper with the logo side (side to be printed) face up.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.

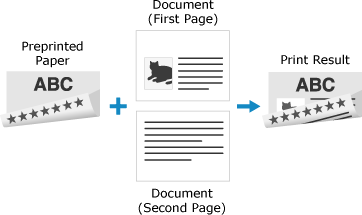

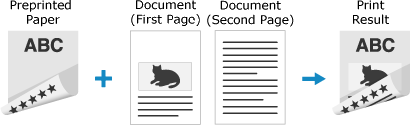

Printing on Both Sides of Paper with a Logo
The direction in which the paper is loaded and which side is face up vary depending on the orientation of the paper, the paper source for loading paper, and the paper size.
Paper with logo in portrait orientation
Paper Deck and Paper Drawer
Load the paper with the logo side (side to be printed first) face up.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
Multi-purpose Tray
Load the paper with the logo side (side to be printed first) face down.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
POD Deck Lite-C
Load the paper with the logo side (side to be printed first) face down.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
Multi-drawer Paper Deck-E
Load the paper with the logo side (side to be printed first) face down.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
Paper Deck Unit-E
Load the paper with the logo side (side to be printed first) face down.
Document Insertion Unit-R
Load the paper with the logo side (side to be printed first) face down.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
Paper with logo in landscape orientation
Paper Deck and Paper Drawer
Load the paper with the logo side (side to be printed first) face up.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper (For the Paper Drawer Only)
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
Multi-purpose Tray
Load the paper with the logo side (side to be printed first) face down.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
POD Deck Lite-C
Load the paper with the logo side (side to be printed first) face down.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
Multi-drawer Paper Deck-E
Load the paper with the logo side (side to be printed first) face down.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
Paper Deck Unit-E
Load the paper with the logo side (side to be printed first) face down.
Document Insertion Unit-R
Load the paper with the logo side (side to be printed first) face down.
A4 or A5 Size Paper
Use the same method when loading B5 paper in Asia/Oceania, or LTR paper in the Americas.
A3 Size Paper
Use the same method when loading B4 paper in Asia/Oceania, or 11" x 17" and LGL paper in the Americas.
