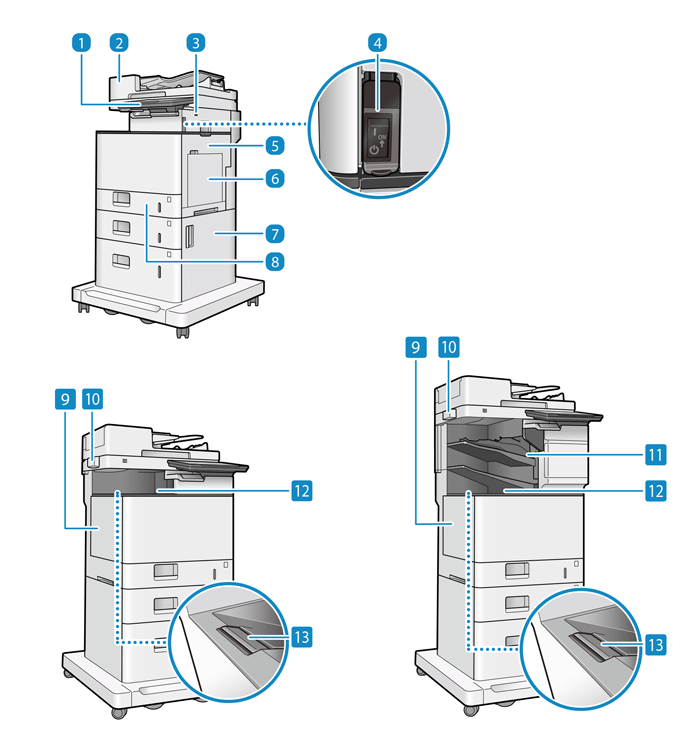

Front Side

Control panel

The control panel consists the indicators and the touch panel display. You can perform all the operations and specify settings from the control panel.Control Panel

Feeder

Automatically feeds originals into the machine for scanning. When two or more sheets are loaded in the feeder, originals can be scanned continuously.2-Sided Single Pass Feeder

USB port (Front-right side of the machine)

You can connect a commercial USB memory device or USB keyboard.

* Supports USB 2.0.

Power switch

Press the power switch when turning ON or OFF the machine. Turning ON and OFF the Machine

Right cover of the main unit

Open this cover when clearing a paper jam inside the machine. Paper Jams in the Paper Source

Multi-purpose tray

Load paper into the multi-purpose tray when you want to use a type of paper different from that which is loaded in the paper drawer. Multi-Purpose Tray

Right cover of the paper drawer

Open this cover when clearing a paper jam inside the machine. Paper Jams in the Paper Source

Paper drawer 1

Load the type of paper that you frequently use. Paper Drawer

Left cover of the main unit

Open this cover when replacing the toner cartridge. Replacing the Toner Cartridges

Glass cleaning sheet storage box

Use this box to store the cloth for cleaning the platen glass.

Finisher

When paper is output, you can use some finishing functions. Finisher (For 710Z / 610Z / 520Z)

Output tray (Tray A)

Paper is output here when printing finishes. When you use 710Z / 610Z / 520Z, you can specify functions for which the tray is used, by configuring [Output Tray Settings]. Output Destination Settings (For 710Z / 610Z / 520Z)

Output tray paper supporter

Raise this supporter so that printed paper does not fall down.

IMPORTANT

If you connect a device that exceeds the following power supply capacity provided by the machine to the USB port (for USB devices), the machine may be damaged.

5 V 500 mA

Do not forcefully push the feeder to close when placing a book, magazine, or other thick original on the platen glass.

NOTE

For details about the configuration of the machine when options are installed and the part names of the optional equipment units, see the following.

Supported Options

To ensure efficient use of the machine, clean the surface of the machine and platen glass regularly.

Cleaning the Surface of the Machine

Cleaning the Platen Glass

If the following symptoms occur when using the feeder, clean the feeder: Cleaning the Feeder

Originals become dirty

Originals frequently jam

Printouts appear smudged after scanning, copying, or sending faxes

Original size is not detected correctly
