Installing ROM
NOTE |
A Phillips screwdriver is required.Have a screwdriver ready that matches the size of the screws for the slot cover. |
1
Turn the printer OFF, and then disconnect the cables or cords from the printer.
| Shut down the printer before turning it OFF. For details on the procedure for shutting down the printer, see " Turning the Printer ON/OFF." |
<How to disconnect the cable or cord>
USB cable* | (2) Turn the computer OFF. (3) Disconnect the cable from the printer. |
LAN cable* | (4) Disconnect the cable from the printer. |
Power cord | (5) Disconnect the power plug from the AC power outlet. (6) Disconnect the cord from the printer. |
* | Whether the cable is connected or not varies depending on your environment. |
2
Remove the bottom rear cover.
(1) Grasp the handle (A) and open in direction of the arrow.
(2) Remove in the direction of the arrow.
3
Remove the slot cover.
(1) | Remove the screws marked with " " or " ". |
| |
(2) | Open the slot cover. |
(3) | Remove the cover in the direction of the arrow. |
| |
NOTE |
About the location for installing ROMConfirm the installation location and its orientation before installing the ROM module. |
4

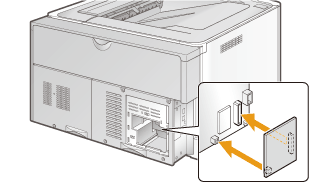

Install ROM.
Push the ROM module into the printer firmly while aligning the module with the two connectors.
5
Attach the slot cover.
(1) | Attach the slot cover. |
(2) | Close the cover. |
| |
(3) | Fasten the 2 screws. |
| |
6
Attach the bottom rear cover.
(1) | Attach the bottom rear cover. |
(2) | Close the cover. |
| |
Next, perform the following procedures. (If you want to install the SD card, follow the procedure from Step 2 in " Installing SD Card".) | If you install the printer and ROM at the same time |
1 | Connect the power cord. | | 2 | Specifying the printer's initial settings. | | Specifying a type of printer driver. | | 3 | Load paper. | | 4 | Connecting to a computer. | | 5 | Install the printer driver. | | 6 | Check the printing operation. | Check the operations by Test Page in Windows. | 7 | Check the ROM installation. | | 8 | Specify the settings for the ROM module as needed. | For details on the settings for the bar code fonts, see "Bar Code Printing Guide" included in the User Manual CD-ROM. |
| | | If you installed ROM afterward (If you are using the printer already) |
1 | Connect the cables and cords. | Connect the removed cables and cords again. | 2 | Check the ROM installation. | | 3 | Specify the settings for the ROM module as needed. | For details on the settings for the bar code fonts, see "Bar Code Printing Guide" included in the User Manual CD-ROM. |
|
