If the room in which the machine is installed is cold but rapidly heated, water droplets (condensation) may form inside the machine. This may result in a noticeable degradation in the quality of the copied image, the inability to properly scan an original, or the copies having no printed image at all.

Locations near computers or other precision electronic equipment.

Electrical interference and vibrations generated by the machine during printing can adversely affect the operation of such equipment.

Locations near televisions, radios, or similar electronic equipment.

The machine might interfere with sound and picture signal reception. Insert the power plug into a dedicated power outlet, and maintain as much space as possible between the machine and other electronic equipment.

Locations near ultrasonic humidifiers or sprinkler humidifiers.

Be careful with the installation layout and operating environment when installing the machine in the following locations.

Locations near equipment (*) which releases volatile substances.

Volatile substances may get inside the machine and affect the image quality.
If you are using such equipment, consult your local authorized Canon dealer or service representative before use.

*Example: equipment which uses hot melt adhesives (bookbinding machines or laminators), aroma equipment, diazo copying machines etc.

Installing multiple machines

If you install multiple machines nearby, consult your local authorized Canon dealer or service representative about the installation layout before the installation so that the air intake section of a machine does not approach the exhaust section of other machines.

Do not remove the leveling feet.

Do not remove the leveling feet after the machine has been installed.
If you put weight on the front of the machine while the drawers, paper decks, or units within the machine are pulled out, the machine may fall forward. To prevent this from happening, make sure that the leveling feet are in place.

Direct Sunlight

Avoid installing the machine in direct sunlight.
If this is unavoidable, use curtains to shade the machine. Be sure that the curtains do not block the machine's ventilation slots or louvers, or interfere with the electrical cord or power supply.

Lighting

We recommend installing the machine in a location with at least 500 lux (29 1/2" (75 cm) above the floor) for normal operation and maintenance.

Delivery Pathway

For information on the size and weights of the imagePRESS Lite C270 / C265 and its options, see Sizes, Weights, and Required Corridor Width for Turning Each Device. Confirm that there is enough moving space and required floor strength to deliver the machine.

Floor Structure

Standard Values of Floor Structure

Measuring Methods for Each Standard Value

Floor Structure

The floor on which this machine will be installed must have a floor load of at least 81.9 lb/ft2 (400 kg/m2). Even if the floor does not have this level of floor load, the machine can be installed near a pillar or beam. Consult with your building contractor before installing the machine.
The weight of the machine will be primarily focused on the floor through the adjuster and wheels. We recommend the use of a mat to distribute the weight.
We also recommend the use of a mat when installing the machine on carpet or wood flooring. For information about mats, contact your dealer.
Do not install the machine on an unstable floor or platform.

Standard Values of Floor Structure

Be sure to install the imagePRESS Lite C270 / C265 and optional equipment on the floor which satisfies the following standard.

Floor Stiffness	The amount of sinking in the floor must be 4 mm or less, if the load of 81.9 lb/ft² (400 kg/m²) is applied to it. If this is not satisfied, use the floor plates partially. * Use the floor plates if the machine is installed on the mat, wooden floor, or rubber floor. * Depending on the amount of sinking in the floor, stack the floor plates to reduce the inequality of height of the joints.
Floor Flatness	The flatness in arbitrary rectangular area 20 1/8" x 19 3/4" (510 mm x 500 mm) must be 1/16" (4 mm) or less.
Floor Vertical Interval	The vertical interval between arbitrary two points of 39 5/16" (1,000 mm) interval must be 0.12" (3 mm) or less. (The amount of sinking in the floor is not included.)
Floor Inclination	The inclination between arbitrary two points of 62 15/16" (1,600 mm) interval must be 0.12" (3 mm) or less.

Measuring Methods for Each Standard Value

The standard values are measured according to the following procedures.
Use the iron plate as a floor plate, which corresponds to 35 1/16" x 19 3/16" (890 mm x 487.5 mm) in size, 28.6 lb (13 kg) in weight, and 1/16" (4 mm) in thickness.

Floor Withstand Load

Confirm the specifications of the floor withstand load to the contractor of the building where the machine is scheduled to be installed.

Floor Stiffness

Prepare one floor plate and put it on the place where the machine is scheduled to be installed. Measure the amount of sinking in the floor when two adults (approximately 333.33 lb (150 kg)) step onto the plate. From this measurements, estimate the amount of sinking in the floor when the machine is installed by doing proportional calculation.

Calculation Method

Each parameter is specified as follows:
t: the height from the floor to the upper surface of the floor plate
Δt: the height from the floor to the upper surface of the floor plate when the load is applied
Ts (inch/lbf): the constant of the estimated amount of sinking in the floor
Ts (ME): the amount of sinking in the floor where this machine is installed

First of all, calculate the constant of the estimated amount of sinking in the floor.
Ts (inch/lbf) = (t - Δt)/333.33
Using this constant, estimate the amount of sinking in the floor where this machine is installed.
Ts (ME) = (599.66 (lbf)/2) x Ts (inch/lbf)

Example

In the case of

t = 0.16" (4 mm) Δt = 0.12" (3 mm)

The constant of estimated amount of sinking in the floor is calculated as shown below.

(0.16 - 0.12)/333.33 = 0.00012

In this example, the estimated amount of sinking in the floor where this machine is installed is 0.03598" (0.091 mm) with the following formula.

Ts (ME) = (599.66 (lbf)/2) x 0.00012 = 0.03598

If you attach the optional POD Deck Lite-C to the main unit, the installation position of the POD Deck Lite-C must be lower than that of the main unit. As with the above description, the difference between the estimated amount of sinking in the floor where the main unit is installed and the one in the floor where the POD Deck Lite-C are installed must be 1/8" (4 mm) or less. Also, if the installation position of the POD Deck Lite-C is higher more than that of the main unit, put the floor plates only under the main unit to reduce the difference.

Floor Flatness

Put one floor plate on the floor where the machine is scheduled to be installed, and put the simplified level on the center of it. To make the floor plate horizontal, insert some spacers (coins) under A or B of the floor plate, as shown in the illustration below. Calculate the floor flatness from the spacer's thickness and the number of them.

Calculation Method

Use coins which have same thickness as a spacer.
Each parameter is specified as follows:
t (inch): the thickness of the spacer
a: the number of the spacers inserted under A
b: the number of the spacers inserted under B
When a > b, the floor flatness is calculated by the following formula.
t x a (inch)

Example

The coins of 0.04" (1 mm) in thickness are used as a spacer.

If two spacers are inserted under A, and nothing is inserted under B to make the floor plate horizontal, the floor flatness is 0.08" (2 mm).

Floor Vertical Interval
(This method is used when
there is a step in the floor.)

Arrange two floor plates next to each other and put them on the floor where the machine is scheduled to be installed. According to the measuring method of the "Floor Flatness", set one floor plate horizontally. And then, set another one horizontally in the same way. Measure the difference of height between two floor plates.


Attention for Measuring Put the two floor plates with each long side aligned.

Floor Inclination
(This method is used when the floor inclines gently.)

Arrange two floor plates next to each other and put them on the floor where the machine is scheduled to be installed. According to the measuring method of the "Floor Flatness", set one floor plate horizontally. And then, insert the spacers (coins) under another floor plate to set plate horizontally with its height same as the one that you have set first. In this case, insert the spacers at the arbitrary position of the floor plate edge. Measure the floor inclination with the thickness of the spacers that are located most away from the reference point (the point determined as a bench mark of the height).
(See the illustration below.)


Attention for Measuring Put the two floor plates with each long side aligned.

Calculation Method

Use coins which have same thickness as a spacer. Each parameter is specified as follows.

t (inch): the thickness of the spacer

a: the number of the spacers

The floor flatness is calculated by the following formula.
S = t x a (inch)

Example

The coins of 0.04" (1 mm) in thickness are used as a spacer. If three spacers are inserted under the position that is most away from the reference point, the floor inclination is 0.12" (3 mm)(= 0.04" (1 mm) x 3).

Installation Space

Necessary Installation Space

Sizes, Weights, and Required Corridor Width for Turning Each Device

Necessary Installation Space

Provide enough space on each side of the machine for unrestricted operation.

Also, the space of 1/8" (5 mm) between each equipment is necessary to connect them.

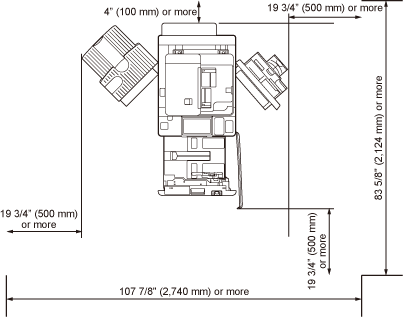

Standard (minimum) configuration

When the Copy Tray-R is attached:

Space Required on the Rear

Make sure to install the machine at least 4" (100 mm) away from the wall surface so that operations on the rear of the machine are not hindered.

Ensure the following space, according to the option configuration of the machine.

When the Stack Bypass Alignment Tray-D and Long Sheet Tray-B are attached: 7 7/8" (200 mm) or more

When any one of the output/feeding options indicated in "Full option (maximum) configuration" is attached: 31 1/2" (800 mm) or more

Space Required on the Front and Left/Right

Make sure to install the machine at least19 3/4" (500 mm) away from the wall surface to ensure space for service operations.

Ensure the following space, according to the option configuration of the machine.

When any one of the output/feeding options indicated in "Full option (maximum) configuration" is attached: 39 3/8" (1,000 mm) or more

Full option (maximum) configuration

For the following device configurations

Stack Bypass Alignment Tray-D

Stack Bypass-D

Paper Deck Path Kit-B

Multi-drawer Paper Deck-E

Document Insertion Unit-R

Multi Function Professional Puncher-C

Paper Folding Unit-K

Booklet Finisher-AG

Booklet Trimmer-G

Space Required on the Rear

Make sure to install the machine at least 31 1/2" (800 mm) away from the wall surface so that operations on the rear of the machine are not hindered.

Ensure the following space, according to the option configuration of the machine.

When none of the output/feeding options indicated in "Full option (maximum) configuration" are attached: 4" (100 mm) or more

Space Required on the Front and Left/Right

Make sure to install the machine at least 39 3/8" (1,000 mm) away from the wall surface to ensure space for service operations.

Ensure the following space, according to the option configuration of the machine.

When none of the output/feeding options indicated in "Full option (maximum) configuration" are attached: 19 3/4" (500 mm) or more

Sizes, Weights, and Required Corridor Width for Turning Each Device

Product Name	Dimensions (W x D x H)	Weight	Corridor Width Required for Rotation*1
imagePRESS Lite C270 / C265	27 1/8" x 36 7/8" x 46 5/8" (689 mm x 937 mm x 1,185 mm)	Approx. 562.2 lb (Approx. 255 kg) (Excluding toner cartridge)	65 1/2" (1,663 mm)
POD Deck Lite-C	25 7/8" x 27" x 22 1/2" (656 mm x 686 mm x 570 mm)	Approx. 149.9 lb (Approx. 68 kg)	57 1/8" (1,449 mm)
Paper Deck Unit-E	14 1/4" x 24 7/8" x 22 1/2" (363 mm x 630 mm x 572 mm)	Approx. 75 lb (Approx. 34 kg)	48 3/8" (1,227 mm)
Multi-drawer Paper Deck-E	39"* x 31 1/2" x 42 1/2" (990 mm* x 800 mm x 1,080 mm) *When the Paper Paper Deck Path Kit-B, Stack Bypass-D, Stack Bypass Alignment Tray-D are included: 61 7/8" (1,572 mm)	Approx. 392.4 lb (Approx. 178 kg)	69 7/8" (1,773 mm)
Staple Finisher-AG	31 1/2"* x 31 1/4" x 48 3/4"** (800 mm* x 792 mm x 1,239 mm*) When the auxiliary tray is extended: 35" (890 mm) When the Long Sheet Tray-B is included: 44 3/4" (1,136 mm) When the Finisher Long Sheet Catch Tray-B is included: 58 5/8" (1,490 mm) When the Long Sheet Tray-B is included: 51 7/8" (1,317 mm) When the Finisher Long Sheet Catch Tray-B is included: 51 7/8" (1,317 mm)	Approx. 286.6 lb (Approx. 130 kg)	64" (1,626 mm)
Booklet Finisher-AG	31 1/2"* x 31 1/4" x 48 3/4"** (800 mm* x 792 mm x 1,239 mm*) When the auxiliary tray is extended: 41 3/4" (1,060 mm) When the Long Sheet Tray-B is included: 44 3/4" (1,136 mm) When the Finisher Long Sheet Catch Tray-B is included: 58 5/8" (1,490 mm) When the Long Sheet Tray-B is included: 51 7/8" (1,317 mm) When the Finisher Long Sheet Catch Tray-B is included: 51 7/8" (1,317 mm)	Approx. 396.8 lb (Approx. 180 kg)	64" (1,626 mm)
Document Insertion Unit-R	29 3/8" x 31 1/4" x 55 3/8" (746 mm x 793 mm x 1,407 mm)	Approx. 134.5 lb (Approx. 61 kg)	62 5/8" (1,589 mm)
Paper Folding Unit-K	13 1/4" x 31 1/4" x 46 7/8" (336 mm x 793 mm x 1,190 mm)	Approx. 156.5 lb (Approx. 71 kg)	53 5/8" (1,361 mm)
Booklet Trimmer-G	72 1/4" x 31 1/4" x 41 1/8" (1,835 mm x 794 mm x 1,044 mm) (Not including conveyer, including output tray) 82 1/2" x 31 1/4" x 41 1/8" (2,094 mm x 794 mm x 1,044 mm) (Including conveyer and output tray)	Approx. 335.1 lb (Approx. 152 kg)	98 3/8" (2,499 mm)
Multi Function Professional Puncher-C	17 1/2" x 31 3/8" x 41" (445 mm x 795 mm x 1,040 mm)	Approx. 224.9 lb (Approx. 102 kg)	60 5/8" (1,540 mm)
Staple Finisher-AC	20 3/4"* x 24 1/2" x 43 1/4" (527 mm* x 623 mm x 1,099 mm) When the auxiliary tray and rotation tray are extended: 25 7/8" (656 mm) When the Long Sheet Tray-B is included: 30 1/2" (774 mm)	Approx. 79.4 lb (Approx. 36 kg)	51 7/8" (1,316 mm)
Booklet Finisher-AC	20 3/4"* x 24 1/2" x 43 1/4" (527 mm* x 623 mm x 1,099 mm) When the auxiliary tray and rotation tray are extended: 25 7/8" (656 mm) When the Long Sheet Tray-B is included: 30 1/2" (774 mm)	Approx. 132.3 lb (Approx. 60 kg)	51 7/8" (1,316 mm)
Document Insertion / Folding Unit-K	26 1/8" x 26 3/4" x 48 7/8" (662 mm x 679 mm x 1,242 mm)	Approx. 167.6 lb (Approx. 76 kg)	57" (1,448 mm)
Copy Tray-R	9 5/8"* x 15" x 6 7/8"** (244 mm* x 382 mm x 175 mm*) When the auxiliary tray is extended: 16 1/2" (420 mm) When the Long Sheet Tray-B is included: 28" (711 mm) *When the Long Sheet Tray-B is included: 15 7/8" (402 mm)	Approx. 2.4 lb (Approx. 1.1 kg) (Excluding the Long Sheet Tray-B)	-
Copy Card Reader	3 1/2" x 3 3/4" x 1 5/8" (88 mm x 96 mm x 40 mm) (Excluding the attachment kit and cable)	Approx. 7.1 oz (Approx. 200 g) (Including the attachment kit and cable)	-

*1 Minimum width required for turning is the diagonal length of the machine (equipment) + about 19 3/4" (500 mm).

Installation Environment

Temperature and Humidity Conditions

Temperature Gradient

Ventilation

Elevation Limitations

Temperature and Humidity Conditions

Do not install the machine in locations with high or low heat and humidity, such as places with a water faucet, water heater, humidifier, air conditioner, heater, or a stove.

During operation, the permissible humidity range is 15 to 60% (with a room temperature of 68 to 80.6˚F (20 to 27˚C)).

There is a risk that the paper feed and image quality may be affected if the machine is used in a location that does not satisfy these specifications.

The permissible humidity range for paper storage is 15 to 60 % (with a room temperature of 68 to 80.6 ˚F (20 to 27 ˚C)). Storing paper in a location that does not meet these specifications may affect the paper feed and image quality.

Temperature Gradient

Using an air conditioner during the winter or sudden temperature changes may have an adverse affect on image positioning, as this may cause the paper to bend or contract, and cause a malfunction of the machine due to condensation. In order to avoid these issues, control the temperature gradient so that it does not exceed 18˚F/H (10˚C/H).

Ventilation

Ensure that there is an air exchange rate of at least 2 times/h and at least 1,060 ft3 (30 m3) of space in the location where the machine will be installed.

This machine generates a slight amount of ozone etc. during normal use. Although sensitivity to ozone etc. may vary, this amount is not harmful. Ozone etc. may be more noticeable during extended use or long production runs, especially in poorly ventilated rooms. It is recommended that the room be appropriately ventilated, sufficient to maintain a comfortable working environment, in areas of machine operation. In addition, do not install this machine where it exhausts directly onto a person.

Elevation Limitations

Install this machine at an elevation of 13,123' (4,000 m) or less.
*Atmospheric pressure at 13,123' (4,000 m): 607.8 hPa (reference value)

Power Supply

Power Supply Conditions

Maximum Energy Consumption

Power Supply Conditions

Use these components within the power supply specifications listed below.

The power supply for components not listed in the table is supplied by the imagePRESS Lite C270 / C265 or other components.

Product Name	Power Supply	Power Supply Cord/ Plug Specifications	The Length of the Power Cord
imagePRESS Lite C270	208-240 V AC 50/60 Hz, 12 A	NEMA 6-15P	78 3/4" (2,000 mm)
imagePRESS Lite C265	110-127 V AC 60 Hz, 16 A	NEMA 5-20P	78 3/4" (2,000 mm)
POD Deck Lite-C	208 V and 120 V machines: 120-127 V AC 60 Hz, 2.2 A 230 V machine: 220-240 V, 50/60 Hz, 1.2 A	208 V and 120 V machines: NEMA 5-15P 230 V machine: CEE 7/7	78 3/4" (2,000 mm)
Paper Deck Unit-E	From the main unit	-	-
Multi-drawer Paper Deck-E	208 V and 120 V machines: 110-127 V AC 60 Hz, 7.0 A 230 V machine: 220-240 V, 50/60 Hz, 3.5A	208 V and 120 V machines: NEMA 5-15P 230 V machine: CEE 7/7	208 V and 120 V machines: 102 3/8" (2,600 mm) 230 V machine: 74 7/8" (1,900 mm)
Stack Bypass-D	From the Multi-drawer Paper Deck-E	-	-
Staple Finisher-AG	120-240 V AC 50/60 Hz, 8 A	208 V and 120 V machines: NEMA 5-15P 230 V machine: CEE 7/7	78 3/4" (2,000 mm)
Booklet Finisher-AG	120-240 V AC 50/60 Hz, 8 A	208 V and 120 V machines: NEMA 5-15P 230 V machine: CEE 7/7	78 3/4" (2,000 mm)
Document Insertion Unit-R	100-240 V AC 50/60Hz, 1.0A	208 V and 120 V machines: NEMA 5-15P 230 V machine: CEE 7/7	78 3/4" (2,000 mm)
Paper Folding Unit-K	From the finisher	-	-
Booklet Trimmer-G	From the finisher	-	-
Puncher Unit-BS	From the finisher	-	-
Puncher Unit-BT	From the finisher	-	-
Multi Function Professional Puncher-C	208 V and 120 V machines: 115 V, 60 Hz, 3.8 A 230 V machine: 230 V, 50 Hz, 2.0 A	208 V and 120 V machines: NEMA 5-15P 230 V machine: CEE 7/7	208 V and 120 V machines: 70 7/8" (1,800 mm) 230 V machine: 94 1/2" (2,400 mm)
Staple Finisher-AC	From the main unit	-	-
Booklet Finisher-AC	From the main unit	-	-
Document Insertion / Folding Unit-K	100-240 V AC 50/60 Hz, 1.0 A	208 V and 120 V machines: NEMA 5-15P 230 V machine: CEE 7/7	78 3/4" (2,000 mm)
2/3 Hole Puncher Unit-A	From the finisher	-	-
2/4 Hole Puncher Unit-A	From the finisher	-	-

Maximum Energy Consumption

The maximum energy consumption of the imagePRESS Lite C270 / C265 and other components is listed below.

Product Name	Maximum Energy Consumption
imagePRESS Lite C270	2,500 W or less *1
imagePRESS Lite C265	2,000 W or less *1
POD Deck Lite-C	480 W or less
Paper Deck Unit-E	Included in the main unit
Multi-drawer Paper Deck-E	1,000 W or less
Stack Bypass-D	Included in the Multi-drawer Paper Deck-E
Staple Finisher-AG	500 W or less
Booklet Finisher-AG	500 W or less
Document Insertion Unit-R	120 W or less
Paper Folding Unit-K	Included in the finisher
Booklet Trimmer-G	300 W or less
Puncher Unit-BS	Included in the finisher
Puncher Unit-BT	Included in the finisher
Multi Function Professional Puncher-C	550 W
Staple Finisher-AC	Included in the main unit
Booklet Finisher-AC	Included in the main unit
Document Insertion / Folding Unit-K	120 W or less
2/3 Hole Puncher Unit-A	Included in the finisher
2/4 Hole Puncher Unit-A	Included in the finisher

*1 Including all the optional equipment that has power supplied from the main unit
