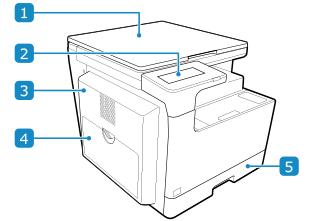

Front Side

Document number: 93S7-004

Platen cover

Secures the originals placed on the platen glass.

Control panel

Use the display and keys to operate the machine and confirm the operations and status. Control Panel

Cover on the left side of the main unit

Open this cover when clearing a paper jam inside the machine. Paper Jams inside the Machine and in a Paper Source

Multi-purpose tray

To temporarily use paper not loaded in the paper drawer, load it in the multi-purpose tray. Multi-purpose Tray

Paper drawer

Load paper you usually use into the paper drawer. Paper Drawer

Output tray

Printed and copied paper is ejected to the output tray.

Front cover

Open the front cover when replacing toner cartridges.

Toner Code

This code indicates the type of genuine toner that can be used with the machine. Use toner with a code that includes the same letters as the code on the front cover of the machine.

USB port (for computer connection)

You can connect a computer to the USB port using a commercial USB cable.

Power socket

Connect the power cord to the power socket.

Power switch

Turns the power of the machine ON and OFF. Turning ON and OFF the Machine
To ensure efficient use of the machine, regularly clean the surface and platen glass.
Cleaning the Surface of the Machine
Cleaning the Platen Glass
