Configuring Ethernet Settings

14CE-078

Ethernet is a standard for communicating data in a local area network (LAN). You can set the communication mode (half-duplex/full-duplex) and the Ethernet type (10BASE-T/100BASE-TX/1000BASE-T). In general, the machine can be used without changing the defaults (Ethernet Driver Settings), but you can change these settings to suit your network environment.
1
Tap <Menu>.

2
Tap <Network Settings>.
If the logon screen appears, enter the correct ID and PIN using the numeric keys, and then press . Logging on to the Machine
3
Tap <Ethernet Driver Settings> <Auto Detect>.
4
Tap whether to configure Ethernet settings automatically or manually.
Configuring Ethernet settings automatically
Tap <On>. The machine detects and automatically sets the communication mode and the Ethernet type that can be used.
Configuring Ethernet settings manually
1
Tap <Off>.
2

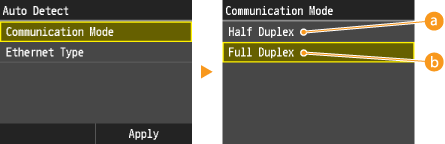

Tap the communication mode.
Tap <Communication Mode> <Half Duplex> or <Full Duplex>.
 <Half Duplex>
Alternately sends and receives communication data. Select when the machine is connected to a networking device using half duplex.
 <Full Duplex>
Simultaneously sends and receives communication data. Use this setting for most environments.
3
Tap the Ethernet type.
Tap <Ethernet Type> <10BASE-T>, <100BASE-TX>, or <1000BASE-T>.
To specify <1000BASE-T>, you must select <Full Duplex> in step 2.
4
Tap <Apply>.
5
Restart the machine.
Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.
