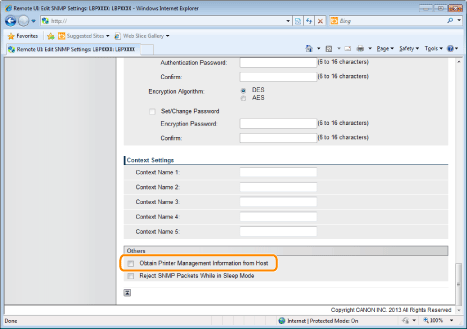

Specify [Obtain Printer Management Information from Host] as needed.
Select the check box to enable monitoring of the printer management information of the machine via SNMP. To disable monitoring of the printer management information, clear the check box.
NOTE
The port monitoring function by SNMP
The port monitoring function by SNMP is a function of Standard TCP/IP Port, and it periodically obtains printer management information such as information about print applications and ports, using SNMP.
(5)

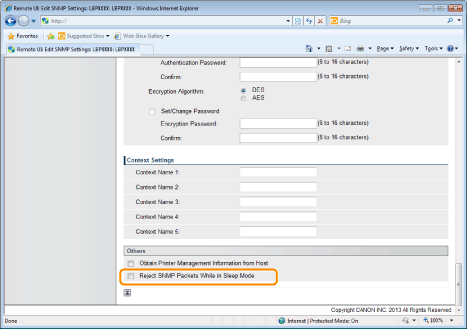

Make a setting for rejecting to receive SNMP packets while in sleep mode, as necessary.
If you select the check box for [Reject SNMP Packets While in Sleep Mode], you may be unable to access the printer from Canon software (iW Series) or applications using the SNMP protocol.

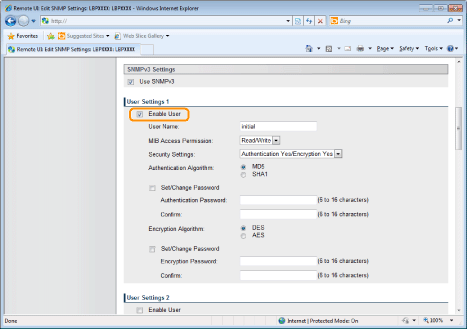

Select the [Enable User] check box under [User Settings 1].
2.
In [User Name], enter the user name to be used in the SNMP v. 3 protocol. Up to 32 alphanumeric characters can be entered.
3.
For [MIB Access Permission], select in which mode the SNMP v. 3 agent can operate, [Read/Write] or [Read Only].
4.

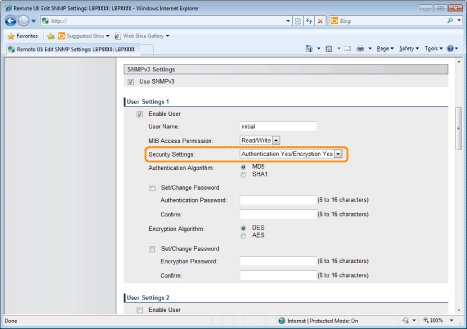

Under [Security Settings], select from [Authentication Yes/Encryption Yes], [Authentication Yes/Encryption No] or [Authentication No/Encryption No] for the security used by SNMPv3.
5.

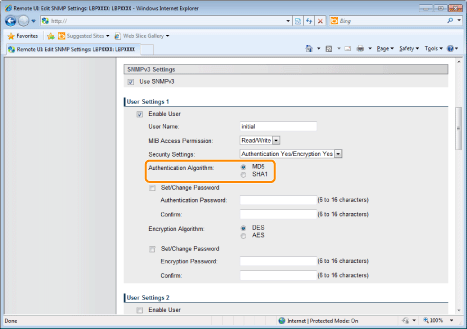

If [Authentication Yes/Encryption Yes] or [Authentication Yes/Encryption No] is set for [Security Settings], select [MD5] or [SHA1] for [Authentication Algorithm] as the authentication algorithm used by SNMPv3.
6.
When [Authentication Yes/Encryption Yes] is set using [Security Settings], set an authentication password.
[Authentication Password]:
Enter the password to be used for the authentication function of the authentication algorithm. 6 to 16 alphanumeric characters can be entered.
[Confirm]:
To confirm the password, enter the entered [Authentication Password] again.
If the TLS encrypted communication function is not used, this item cannot be set by the Remote UI. Either enable the TLS encrypted communication function, or set from the control panel using the following procedure.
a.
Press [ ] (Settings), select [Network] → [SNMP v. 3 Settings], and then set [SNMP v. 3] to [On].
b.
Set each password using [Auth. Password] from [User Settings 1] to [User Settings 5].

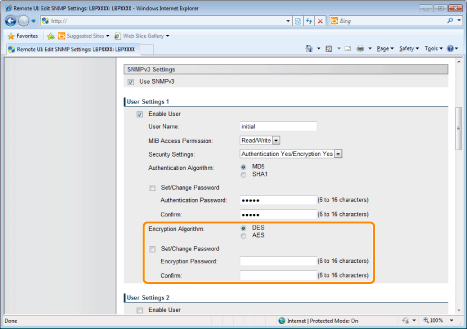

If [Security Settings] are set to [Authentication Yes/Encryption Yes], set an encrypted password.
Set [Encryption Algorithm] to [DES] or [AES].
[Encryption Password]:
Enter the password to be used for the encryption function of the encryption algorithm. 6 to 16 alphanumeric characters can be entered.
[Confirm]:
To confirm the password, enter the entered [Encryption Password] again.
If the TLS encrypted communication function is not used, this item cannot be set by the Remote UI. Either enable the TLS encrypted communication function, or set from the control panel using the following procedure.
a.
Press [ ] (Settings), select [Network] → [SNMP v. 3 Settings], and then set [SNMP v. 3] to [On].
b.
Set each password using [Auth. Password] from [User Settings 1] to [User Settings 5].
Enter the context names used by the SNMPv3 protocol in [Context Name 1] to [Context Name 5] under [Context Settings]. Up to 32 characters can be entered.
If You Want to Erase Context Information
1.
Delete the context names that are entered in [Context Name 1] to [Context Name 5] under [Context Settings] that you want to delete.
