Booklet Printing

You can print two pages of a document on each side of each sheet, and then fold the sheets in half to create a booklet.
Paper Type
Paper Size
Plain paper
(60 to 105 g/m²)
Standard size paper
A3, B4, A4, B5, A5, Ledger (11 x 17), Legal, Letter, Executive, Foolscap, 8K and 16K
Custom size paper:
Short edges 148.0 to 297.0 mm , long edges 182.0 to 450.0 mm
Heavy paper
(106 to 163 g/m²)
Coated Paper
(100 to 160 g/m²)
IMPORTANT
Precautions when performing booklet printing
Do not touch the paper during booklet printing until it is completely output. The paper is first partially output after the front side is printed, and then it is fed again to be printed on the back side.
1.

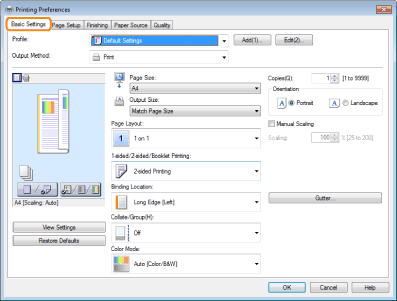

Click [Basic Settings].
For instructions on how to display the printer driver screen, see "Printing" or "Configuring the Default Print Settings."
2.
Select [Booklet Printing] from [1-sided/2-sided/Booklet Printing].
You can also configure detailed settings such as the opening direction and gutter width for booklet printing in the [Detailed Settings for Booklet] dialog box, displayed by clicking [Booklet].
The output image is displayed in the preview area.
NOTE
For details about the various settings in the [Detailed Settings for Booklet] dialog box, view the online help. (See "Viewing the Online Help.")
3.
Click [OK].
NOTE
This function can also be set in the [Finishing] tab.
You cannot specify the [Collate/Group] options in the [Basic Settings]/[Finishing] tab when performing Booklet Printing.
The display may vary according to the operating system, as well as the type and version of the printer driver.
