Paper Jams

Before removing jammed paper, see "Attention (Paper Jams)."
When a paper jam occurs, the printer beeps, displaying the message <Paper is jammed.> in the display.
This section describes the procedure for when [Animated Instruction] is set to [On] (default setting).
If [Animated Instruction] is set to [Off], the following screen is not displayed.
Messages appear one at a time. Confirm all of them.
As the messages disappear when the cover is open, take a note of them if required.
Remove the jammed paper according to the displayed message.

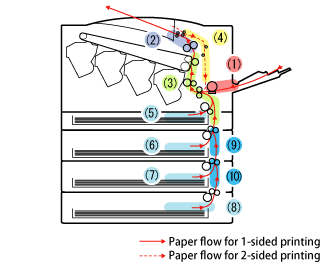

Paper Jam Area
Message
Clearance Procedure
(1) Multi-purpose tray
<MP Tray area>
"Clearing Paper Jams (Multi-purpose Tray)"
(2) Output area
<Output area>
 "Clearing Paper Jams (Output Area, Right Cover Area, Duplex Unit Area, or Drawer 1/2/3/4)"
If paper jams occur frequently during 2-sided printing, change the setting for "Plain L 2-Sided Mode".
"[Setup] Menu ([User Maintenance] Options)"
(3) Inside the right cover
<Right cover area>
(4) Duplex print transport area
<2-Sided unit area>
(5) Drawer 1
<Drawer 1 area>
(6) Drawer 2*
<Drawer 2 area>
(7) Drawer 3*
<Drawer 3 area>
(8) Drawer 4*
<Drawer 4 area>
(9) Cover area of Drawer 2*
<Drawer 2 cover area>
"Clearing Paper Jams (Drawer 2/3 Cover)"
(10) Cover area of Drawer 3*
<Drawer 3 cover area>
 * Only when the optional paper feeder is installed.
